D018 (Code of practice for the initial and periodic
examination, Testing, and Certification of Diving
Plant and System)
D023 (Design for Surface Oriented (Air) surface
system)

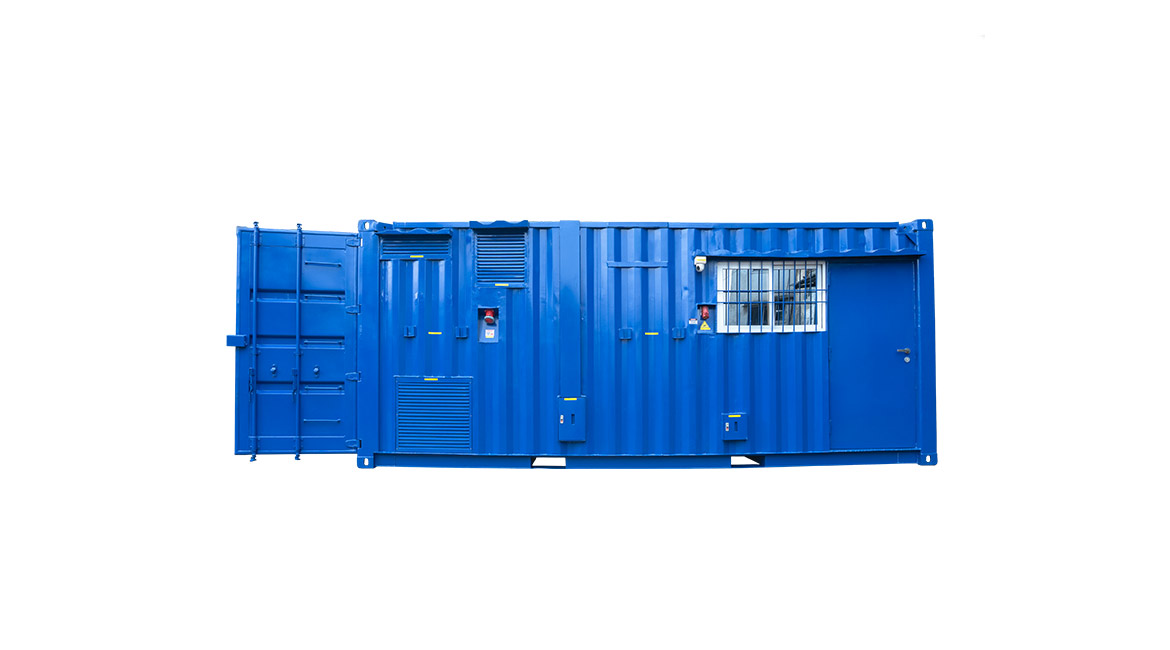

JKSEPL manufactured Machinery containers, 20 ft. & 10 ft. Standard ISO Shipping Container (CSC/TIR Approved, modified to use for diving purpose as per requirement.

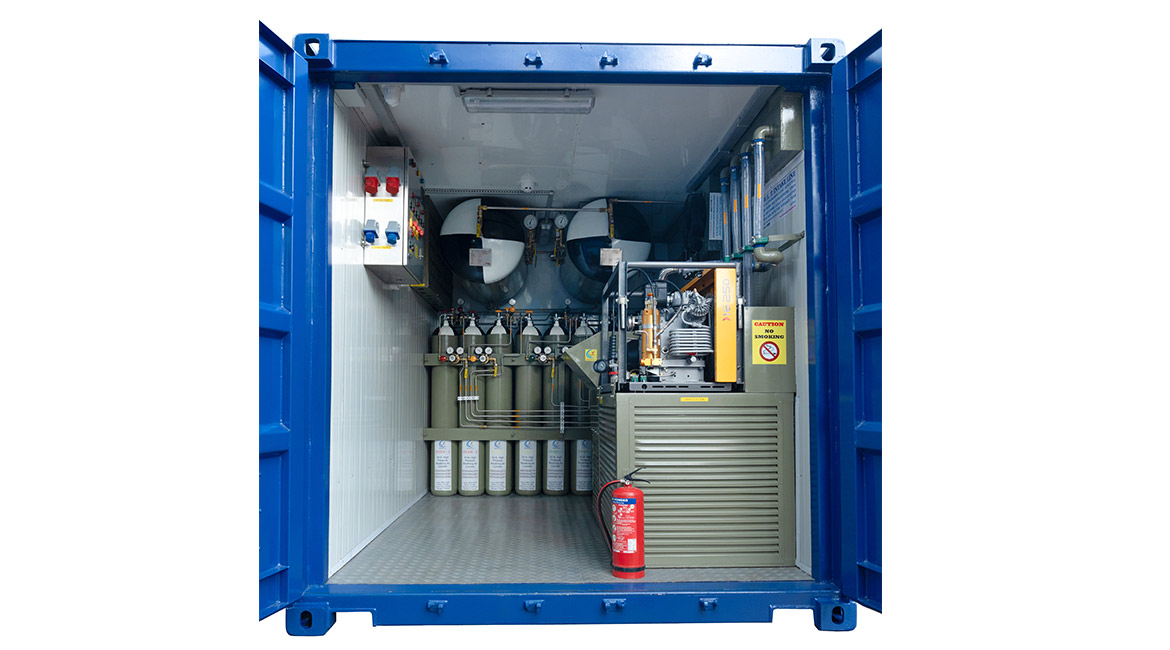

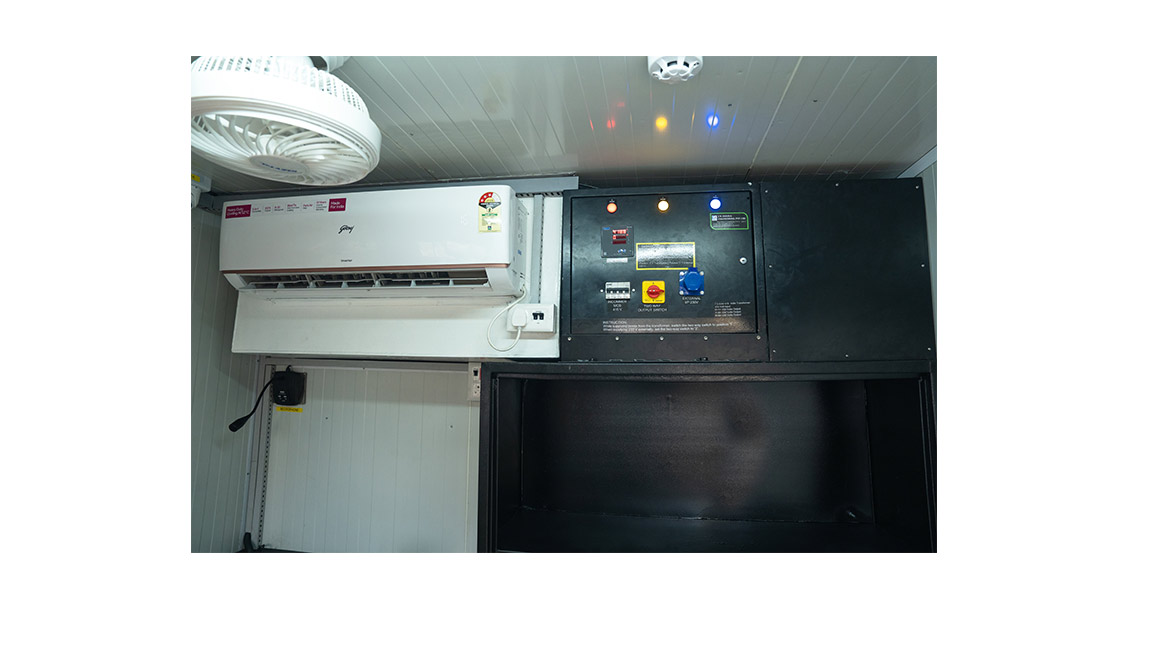

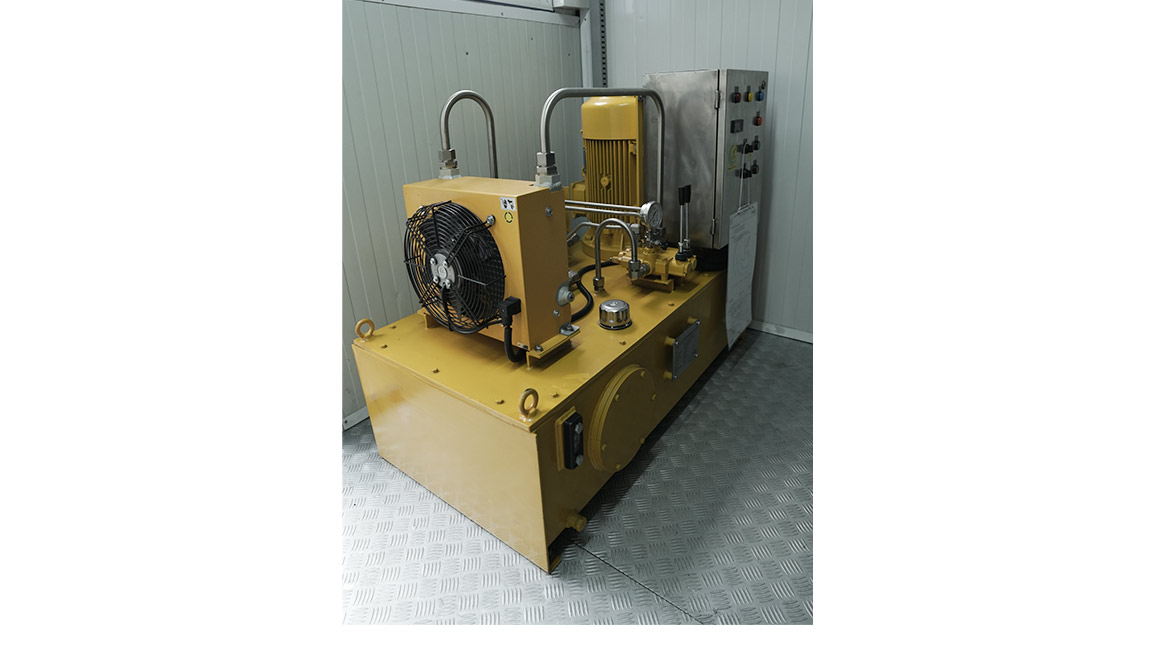

These Machinery containers are equipped with various equipment in the container. These 20ft. containers were separated into two section. Larger sections were used as a Machinery Part and smaller section were used as a Supervision Cabin and workplace cabin. If the container is 10ft. then the section is only use for machinery side.
The whole wall of the Container will be fitted with Fire Retardant Polyurethane Insulation Sandwich Panel having thickness of about 50 mm.
Following are the line presents in the Container in
Machinery side:
Intake line: 02 Nos
LP Compressor Exhaust: 02 Nos
LP Compressor Ventilation 01 Nos
Tube light: 2 Nos
Electrical Wiring 220/440 v with Electrical Management
Panel, as per requirement

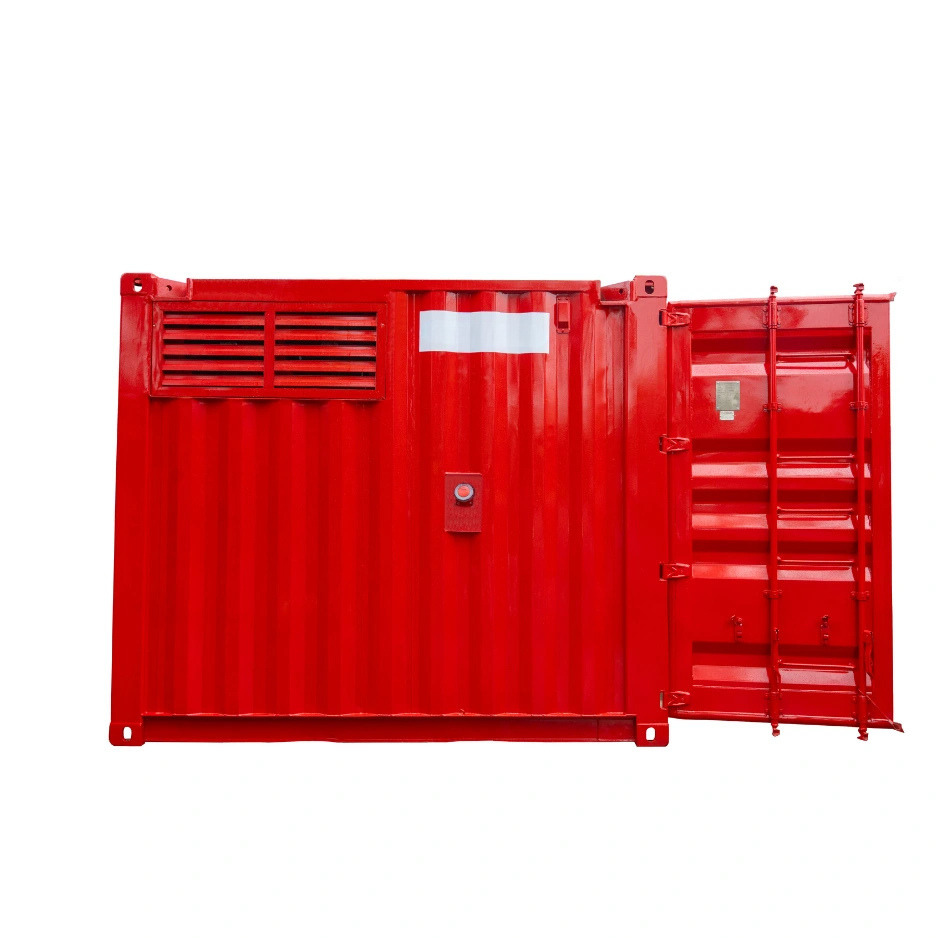

Machinery Container
manufactured by J K Subsea Engineering Private
Limited. These Machinery Container were
also equipped in 10ft. container
having Model No. JK1MC

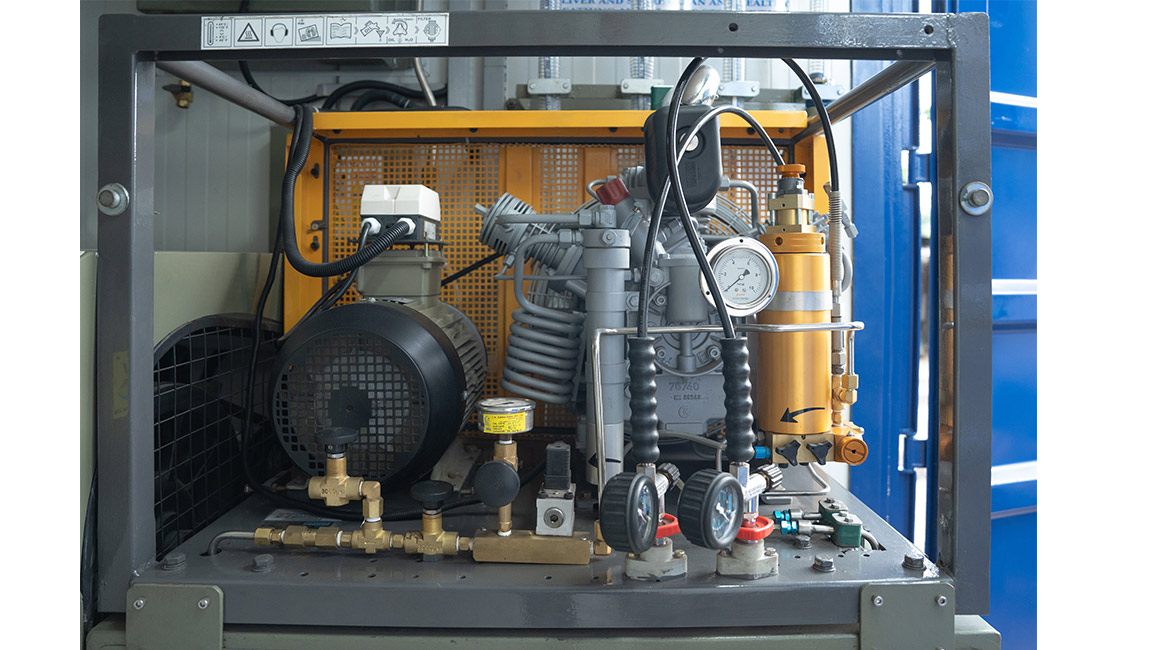

LP Breathing Air Compressor for Diving Purpose
Technical Specification for Compressor
Make: Air Tech
Model: AT-115T & AT-171-T2
Outlet Pressure: 14 Bar
Operating Pressure: 8.5 Bar
Free Air Delivery: 37.4 cfm
Motor Power: 15 HP
Drive type: V-Belt
Electrical Condition: 415V/3HP/ 50-60 Hz
Regulation: Constant Speed Control (CFC)
Type of Motor: IP55 Protection (TEFC)

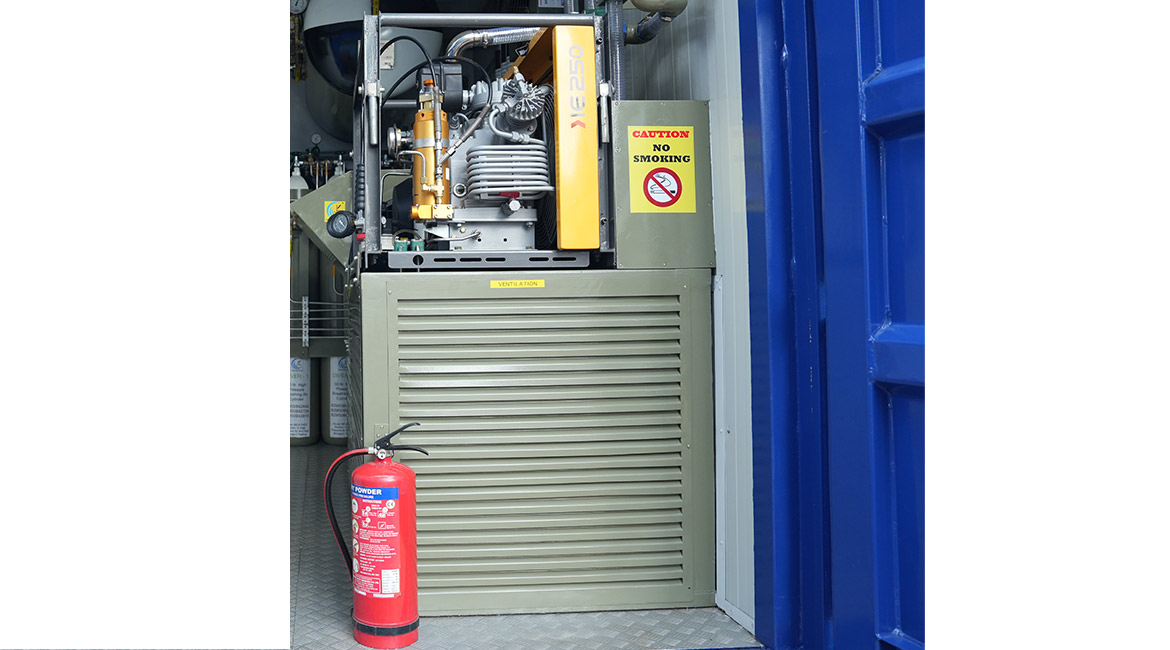

HP Breathing Air Compressor for Diving Purpose
Technical Specification for Compressor
Make: Bauer Mariner Series
Model No: Mariner 250Bauer- IE250-TE
Corrosive Resistant Crash frame
Bauer P 31 Purification System
Charging Rate: 320 lpm
Pressure: 320 & 420 Ba

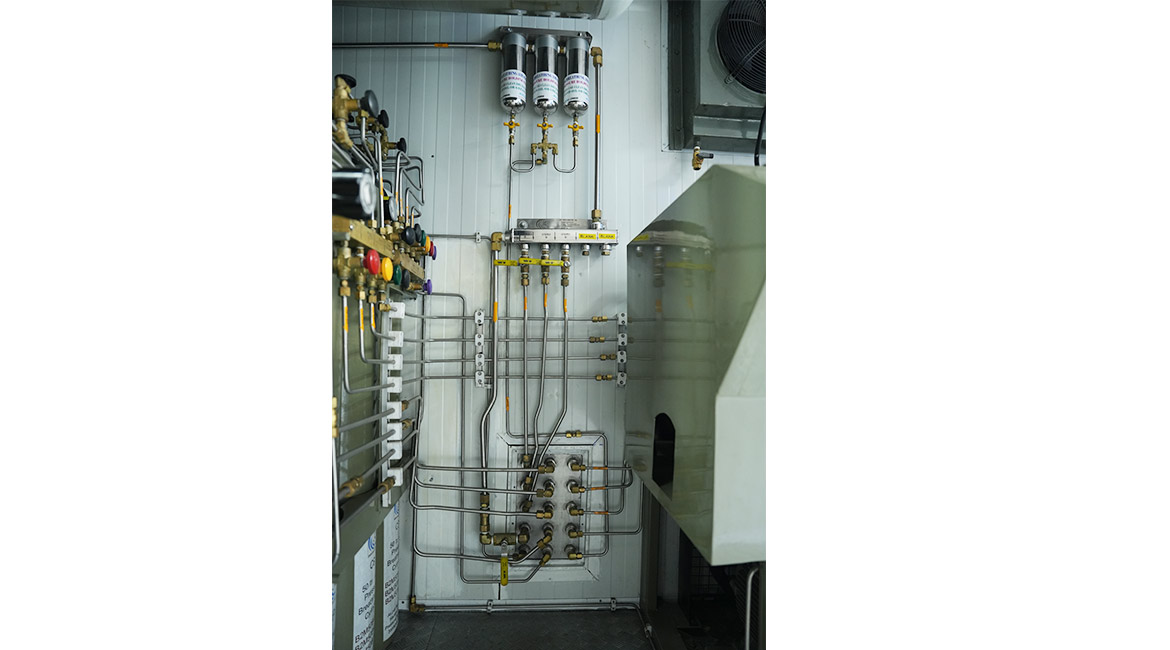

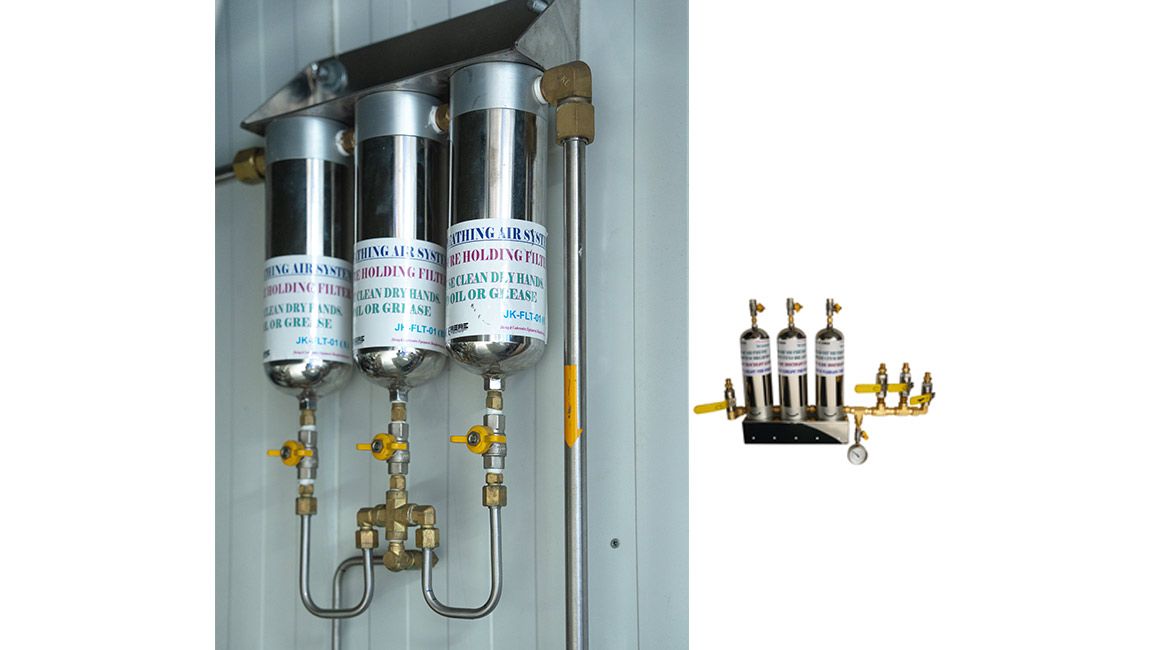

Diving Breathing Air Filter
Configure in 3-stage Diving Breathing Air Filter for the
Low-Pressure Compressor (68 CFM). This Air Filter
comprises a Brass Manifold with a control valve, Non
non-return valve, Essential Required fitting. 6 Outlet
Connection (3 Connections for Diving Panel, 1
Connection for Recompression Chamber, & 2
Connections available as a backup in case of any
emergency situation.

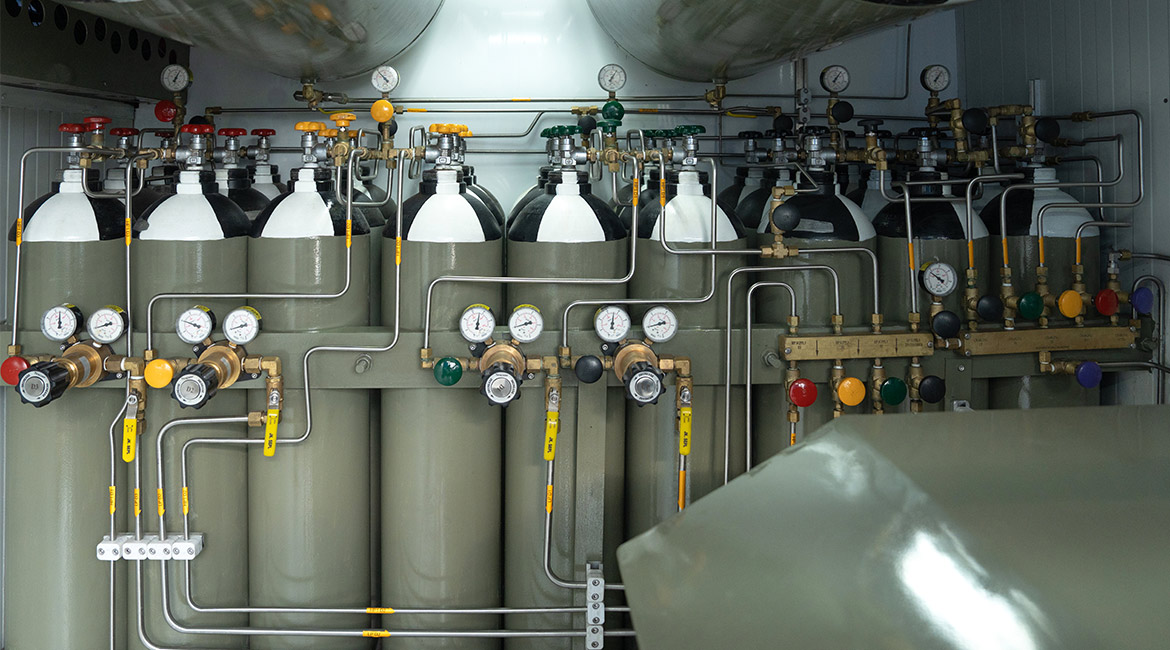

Breathing Air Cylinder Quad
9+9 total 18 Cylinder Breathing Air Quad with High
Pressure Gas Distribution Panel
18 X 200 Bar x 50 ltrs, Cylinder with color coded for
breathing Air Plumbed with Stainless Steel Tubing
and High Pressure Supply Valves, Gauges, Essential
Fittings & Tescom Regulator 2 Nos, These 18
Cylinder were configure into 9 Cylinder as used for
Diving Panel & 9 Cylinder as used for Recompression
Chamber or Air Decompression Chamber
Pressure Reservoir Tank
Storage Reservoir
400+400 ltrs 2 Nos Stainless Steel (SS316L), Pressure
Reservoir Tank for Low Compressor connected in a
series to each other for Diving Breathing Air as per
diving panel and Recompression Chamber. This
Reservoir were mounted on the ceiling of the
container
Umbilical Frame
The Umbilical Frame will be provided on the internal
surface of the container door with Stainless Steel 316
removable hooks capable of holding the 150 mtr. of 4
core diving umbilical on either side, providing equal
balance and equal weight distribution of the umbilical
through out

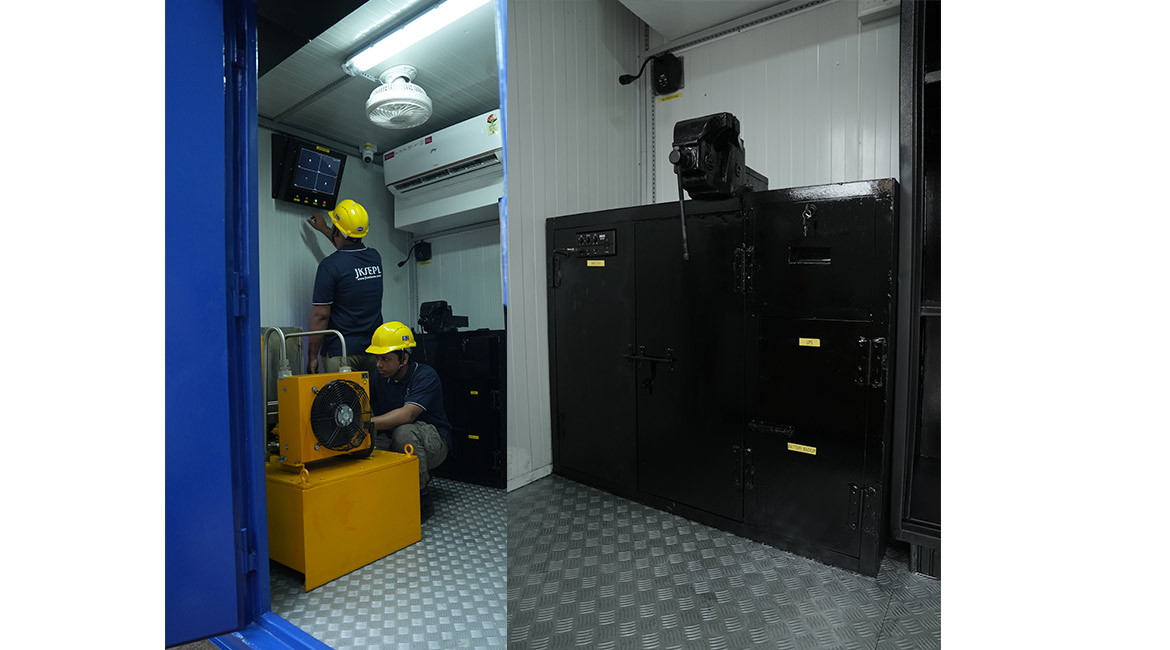

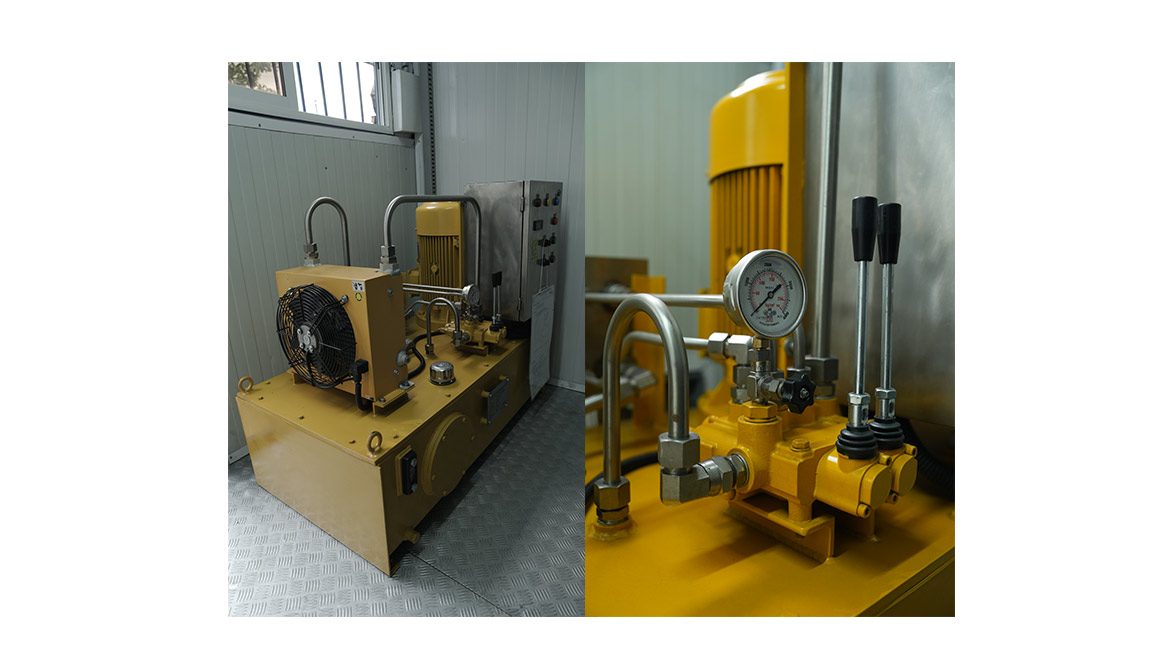

Hydraulic Power Unit with Panel
The Electric Hydraulic Power Unit (HPU) is an open
frame type power unit designed to provide hydraulic
power to underwater tools/ actuator. The unit is self
contained.
The HPU is powered with Electric Motor attached to
Positive Displacement Pump
Electrical starter panel.
Safety Package with High oil temperature display
Emergency Stop
System Relief Valve set at 170 Bar can be adjusted
according to tool requirement.
