D018 (Code of practice for the initial and periodic
examination, Testing, and Certification of Diving
Plant and System)
D040 (Design for Mobile/ Portable Surface Oriented
(Mix Gas /Air) surface system)

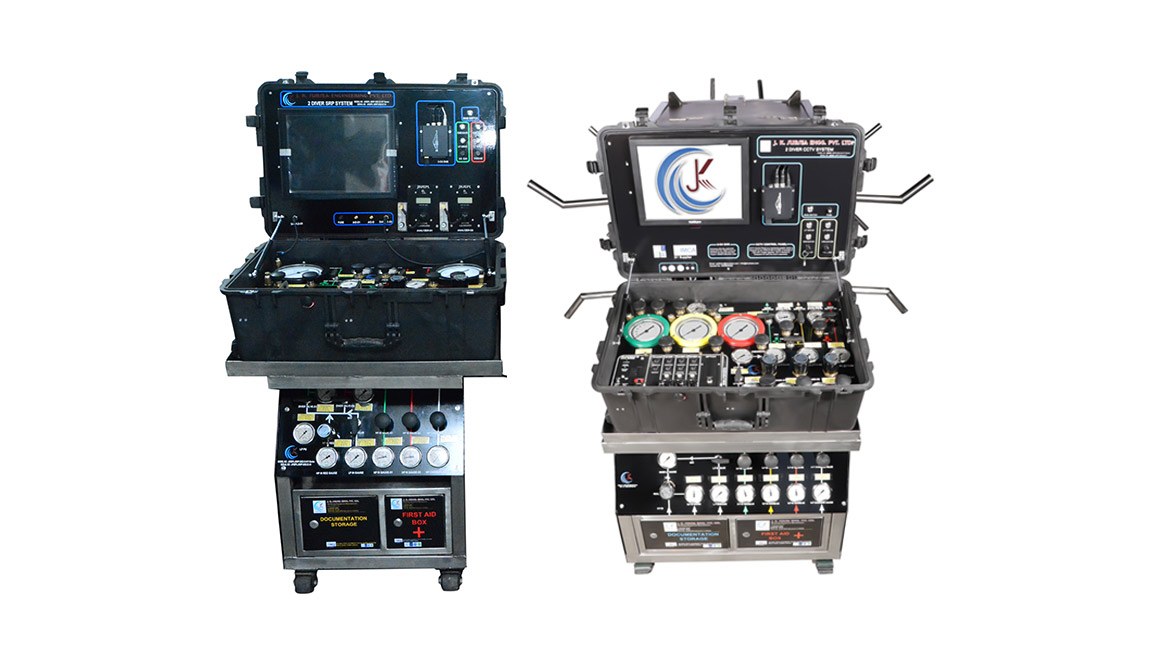

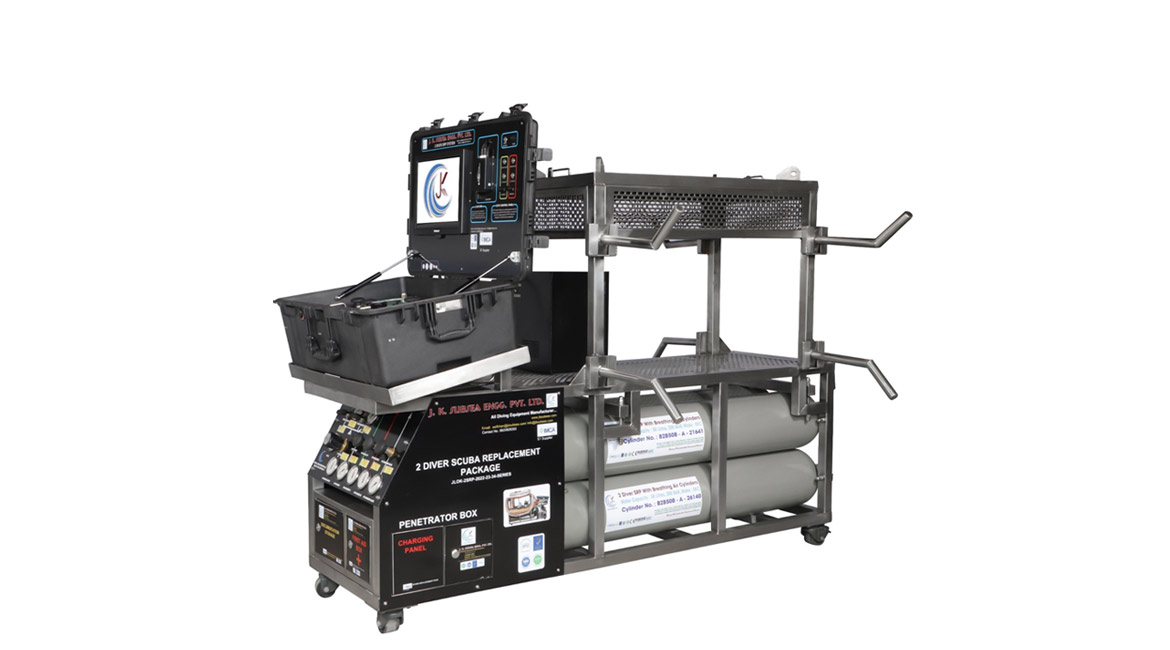

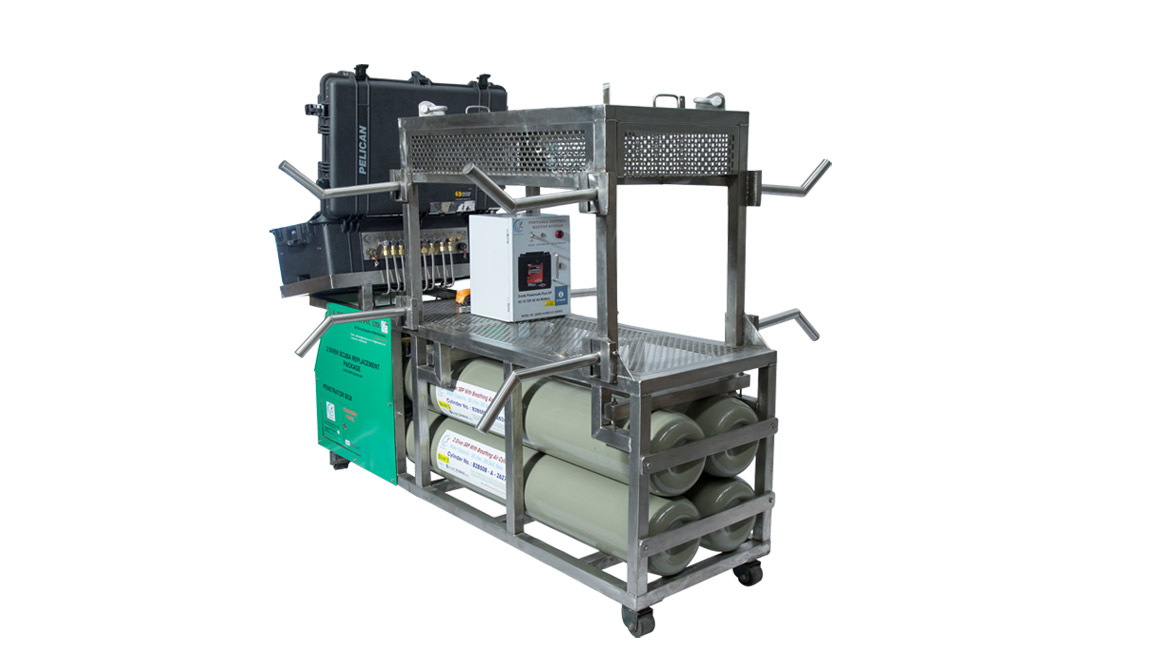

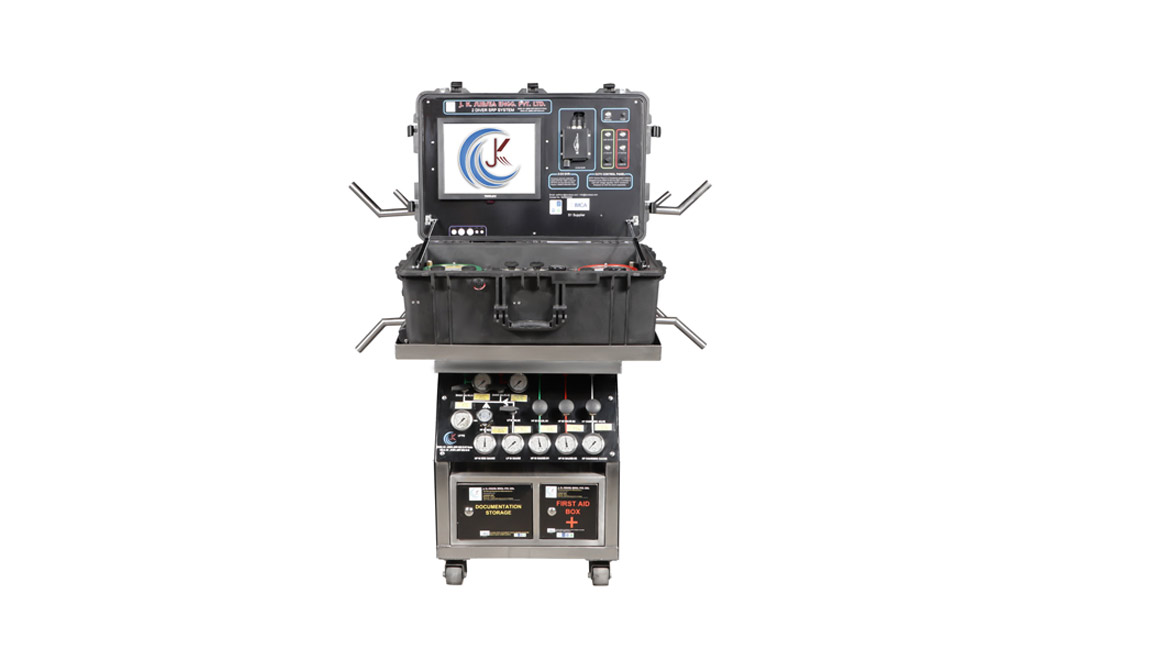

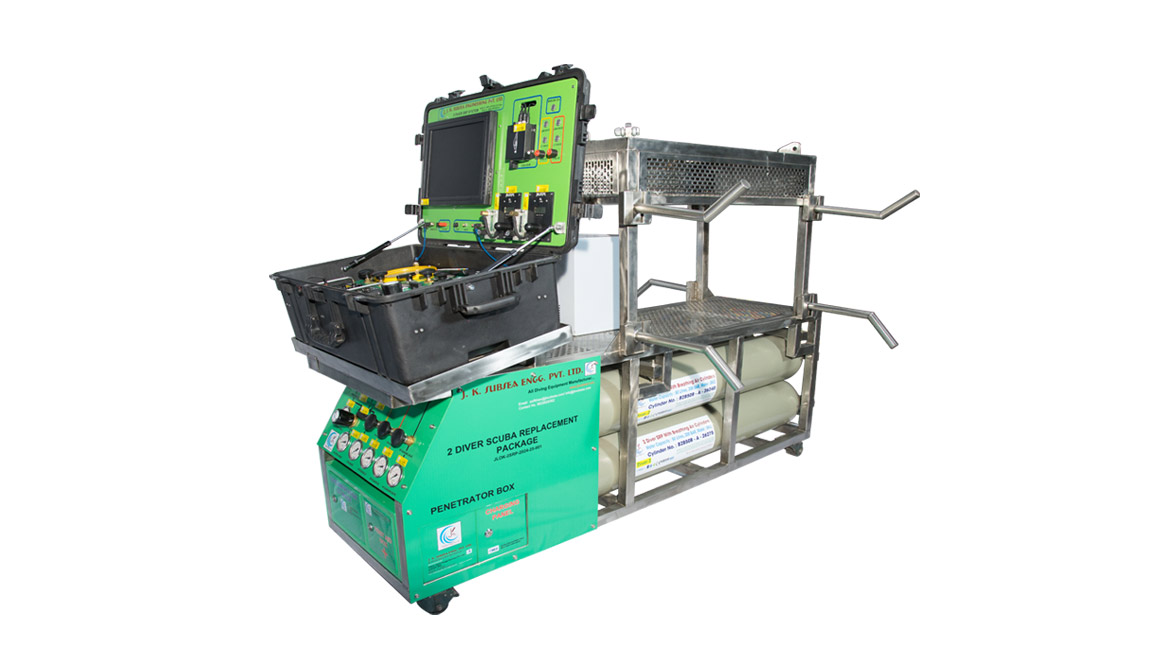

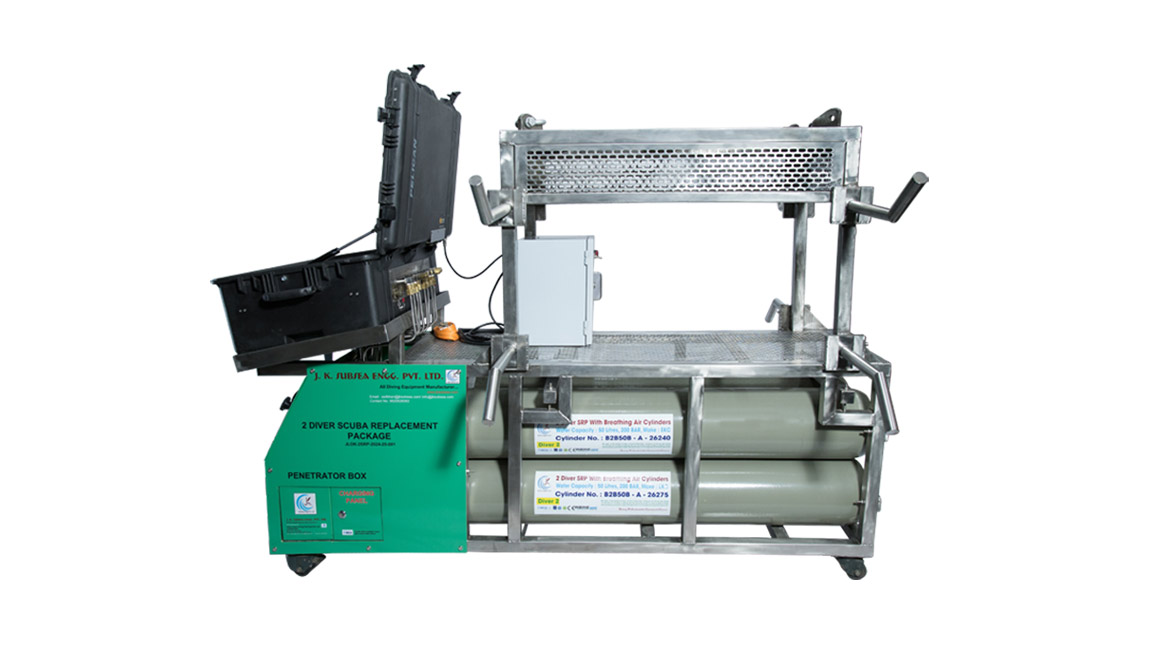

JKSEPL makes a 2-Diver Scuba Replacement Package
majorly known as 2-Diver SRP with 4- Air Breathing
Cylinder 50 ltrs. Cylinder 2- cylinders for each Diver. This 2-diver Portable SRP, manufactured with Stainless
Steel (316L - Grade) with 4 Certified Lifting Lug.
These Panel Comprises of the Followings:
4- Cylinder of Breathing Air
Emergency 2-Diver Air Panel
Portable 2-Diver Air Panel placed in a Pelican Case
Emergency Battery Backup System

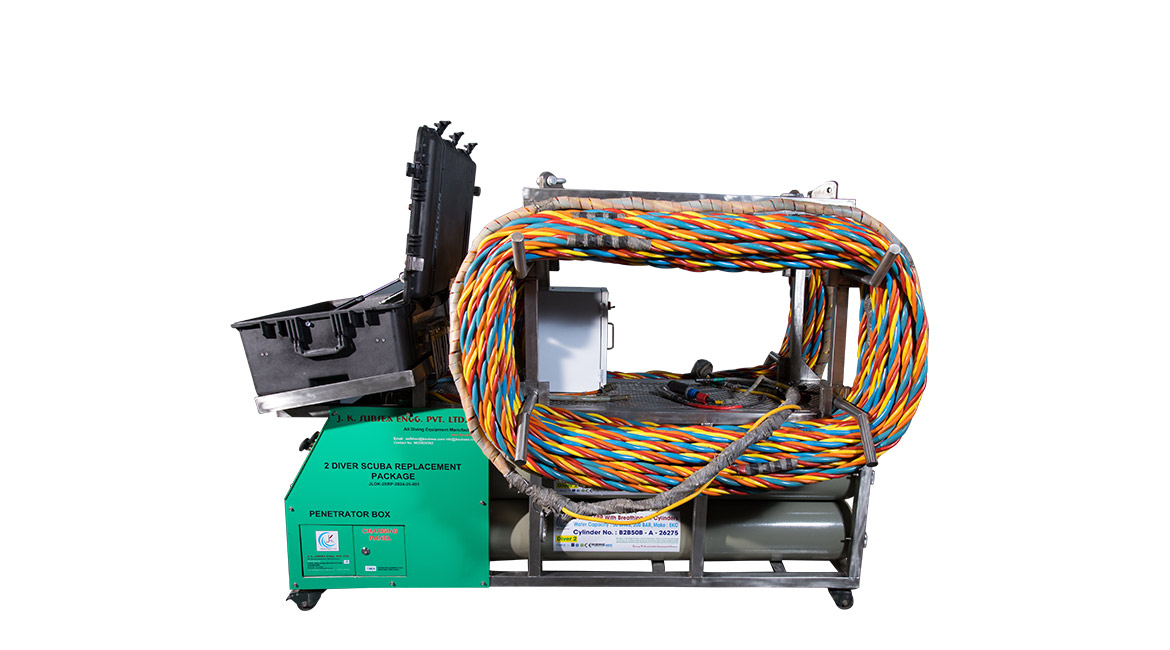

Umbilical Removable Bunk:- For holding Umbilical
Umbilical Type: 4-Core Umbilical.

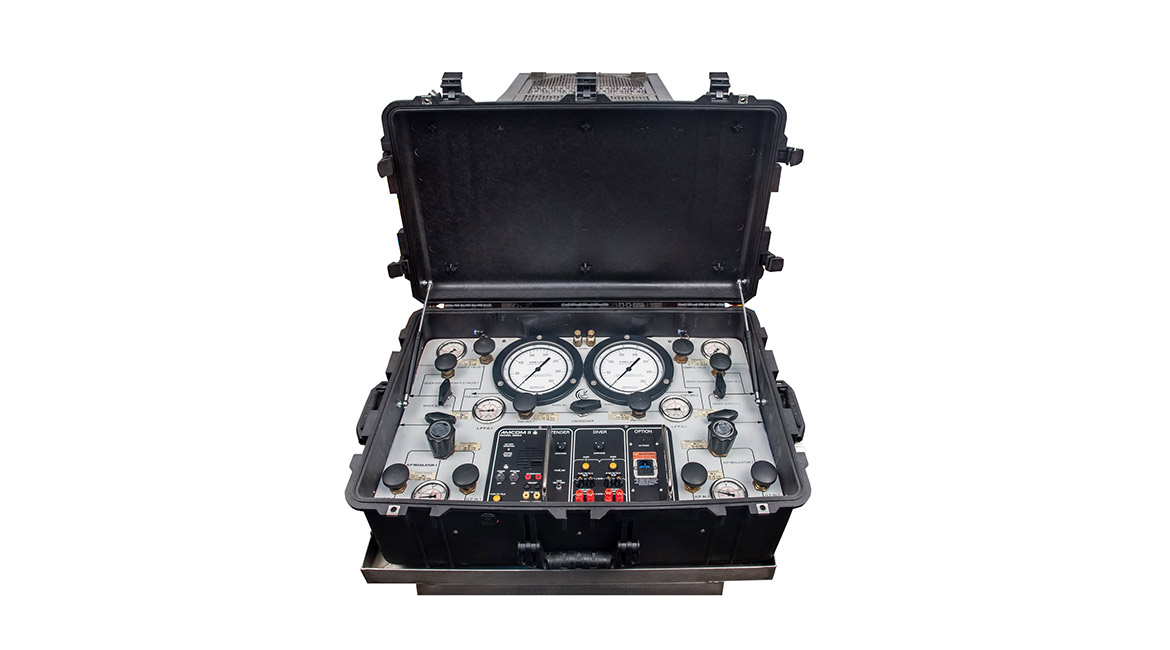

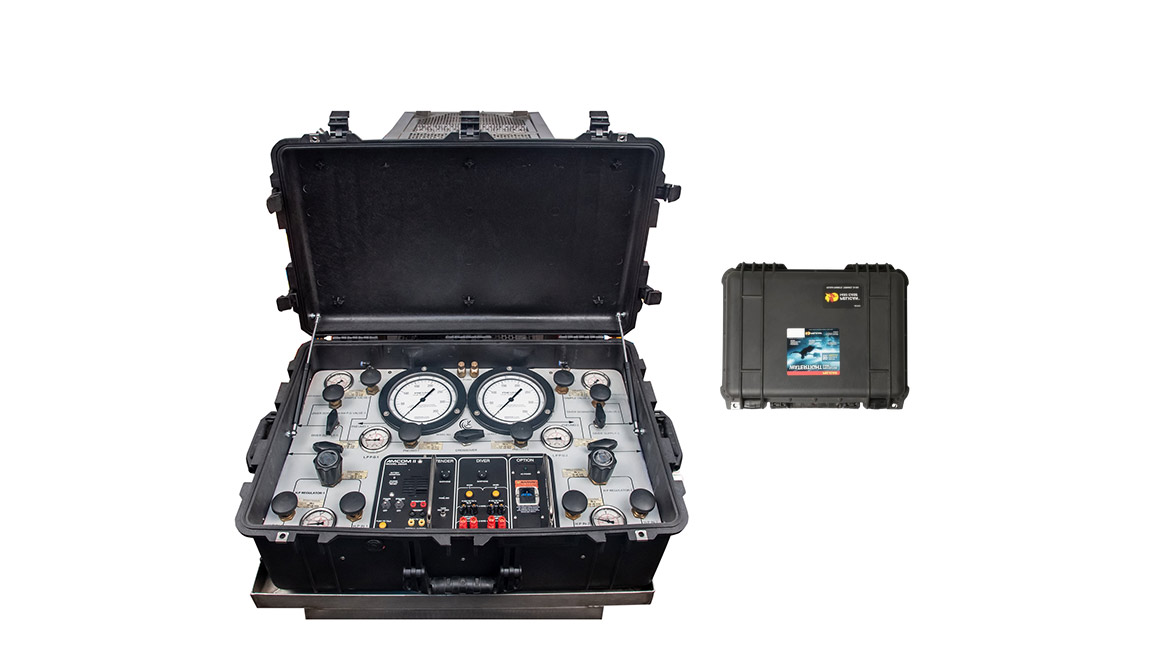

Portable Air Panel
Technical Specification for Portable Air Panel
This Portable Air Panel is mounted in a Pelican Case
configure for 2 Diver by keeping safety in the view.
Each Diver is provided by High-Pressure line with
Gauge and Supply Valve.
Low-Pressure Line with Gauge & Supply Valve.
High Pressure Air Regulator Tescom Make.
Crossover Valve.
Pneumo Depth Gauge with supply valve.
O2 Gas Analyzer equipped with flow meter to
calculate the ppm of Gas present.
A two Diver Amron radio to help in communication
system.
Monitoring system place in the Pelican case for
monitoring the movement of the diver.
Note: These Panel can be configure as per customer
requirement

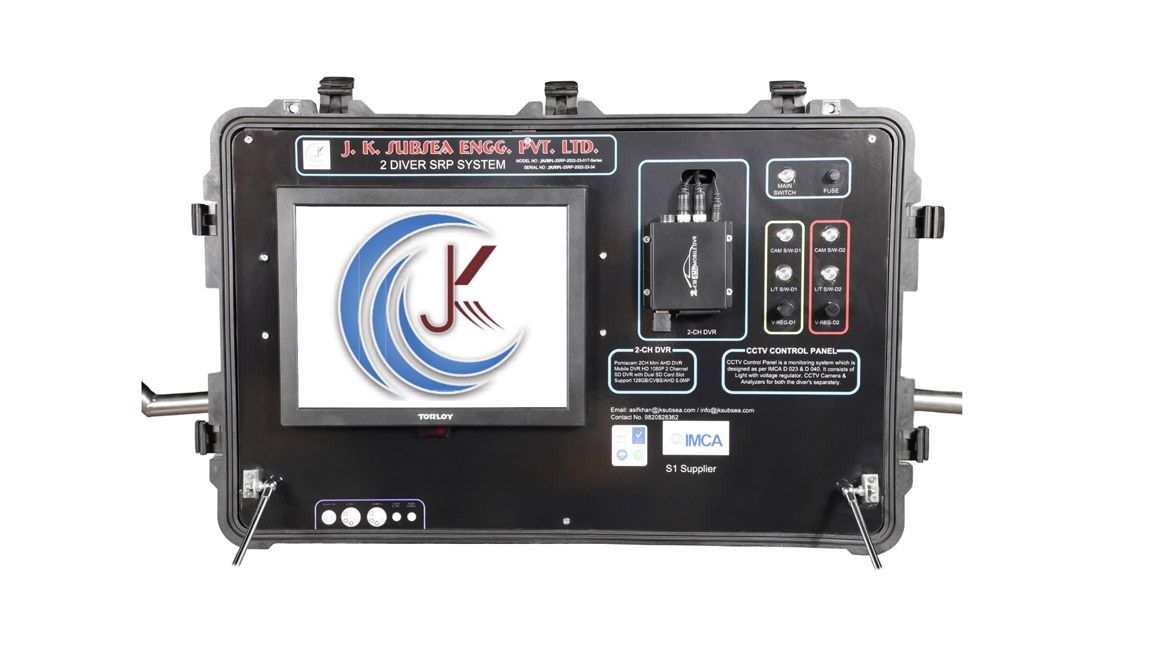

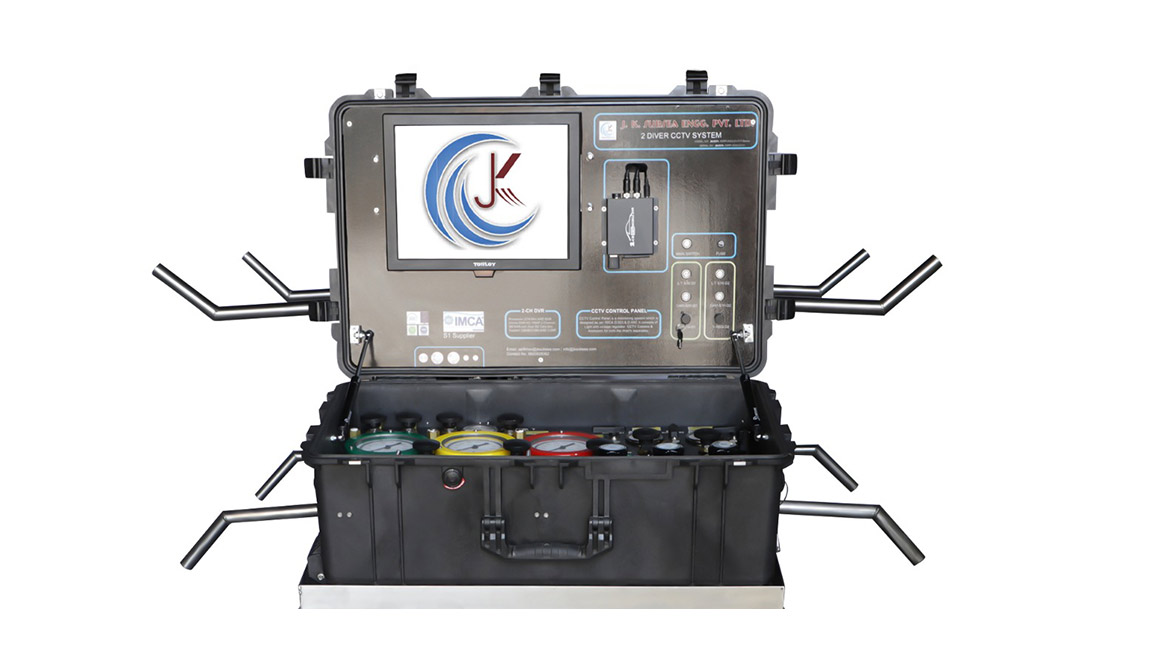

CCTV System
Technical Specification for CCTV System
Each Diver is with the CCTV System
Storage for Diver 1 & Diver 2 is combined, while the
storage for Diver 3 remains separate as previously.
Mobile DVR with dual SD Cards 128 GB slot
(combined).
This CCTV system is also provided with an Amron
Diver Radio for communication between the
Supervisor & Diver
For the 2 Diver System, use the 2 Diver Radio
For the 3 Diver System, use the 3 Diver Radio
Data is extracted easily.

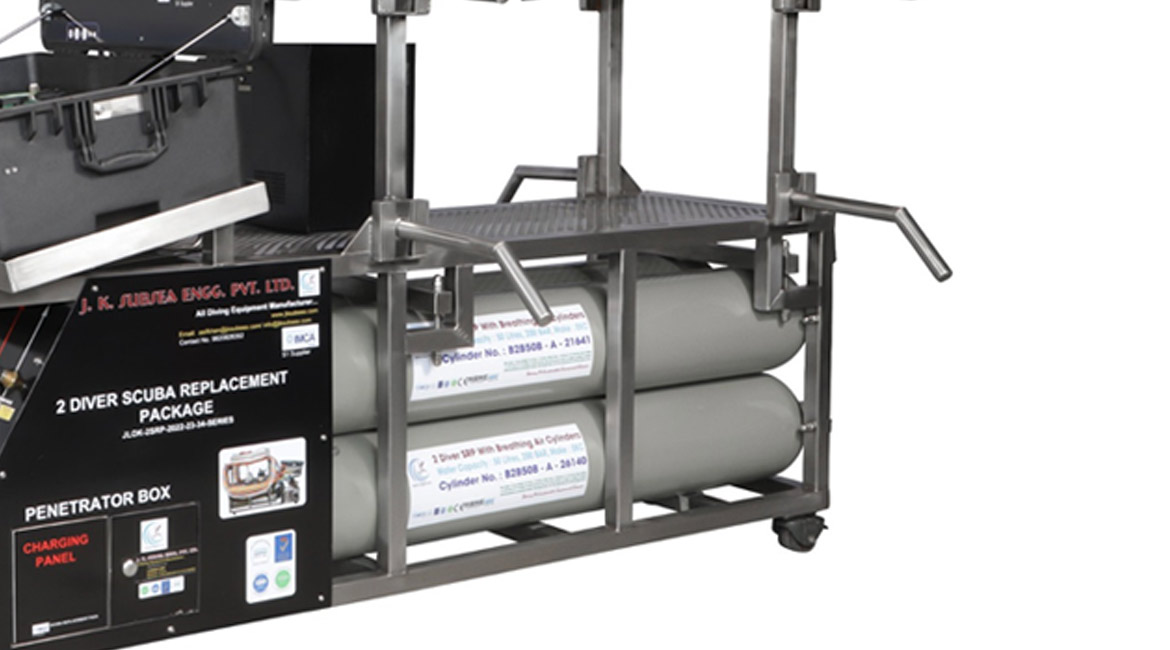

Diving Breathing Air Cylinder
Technical Specification for Breathing Air Cylinder
Water Capacity: 50 ltrs.
Working Pressure: 204 kgf/cm2
Hydrostatic Test Pressure: 340 kgf/cm2
Nominal Length: 1450 mm
Outside Diameter: 232 mm
Cylinder Weight (Empty): 54 kgs
Bend Test: 182 without cracking
Yield Pressure: 500 kgf/cm2
Burst Test: 560 kgf/cm2
Heat Treatment: Hardened, Quenched & Tempered
Painting: In Accordance with Gas Cylinder Rule
2046 of Govt. of India
*PESO Approved

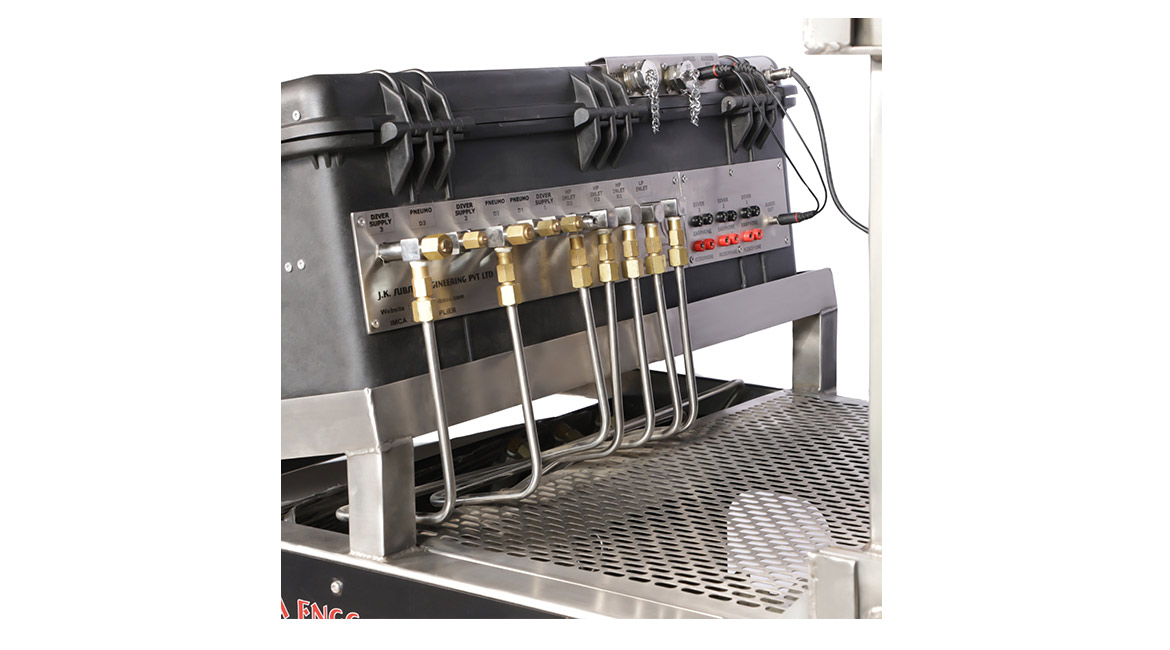

Emergency 2 Diver Air Panel
A panel mount 2 Diver Air Panel is also provided on the
2 Diver Scuba Replacement Package in case of any
Emergency Condition.
A Gas Distribution Panel was installed and Assembled
on the front side of the Frame.
High-Pressure Line, Low-Pressure Line, with supply
valve and Gauges, a high Pressure Regulator.
This panel also helps in charging the breathing air
Cylinder.

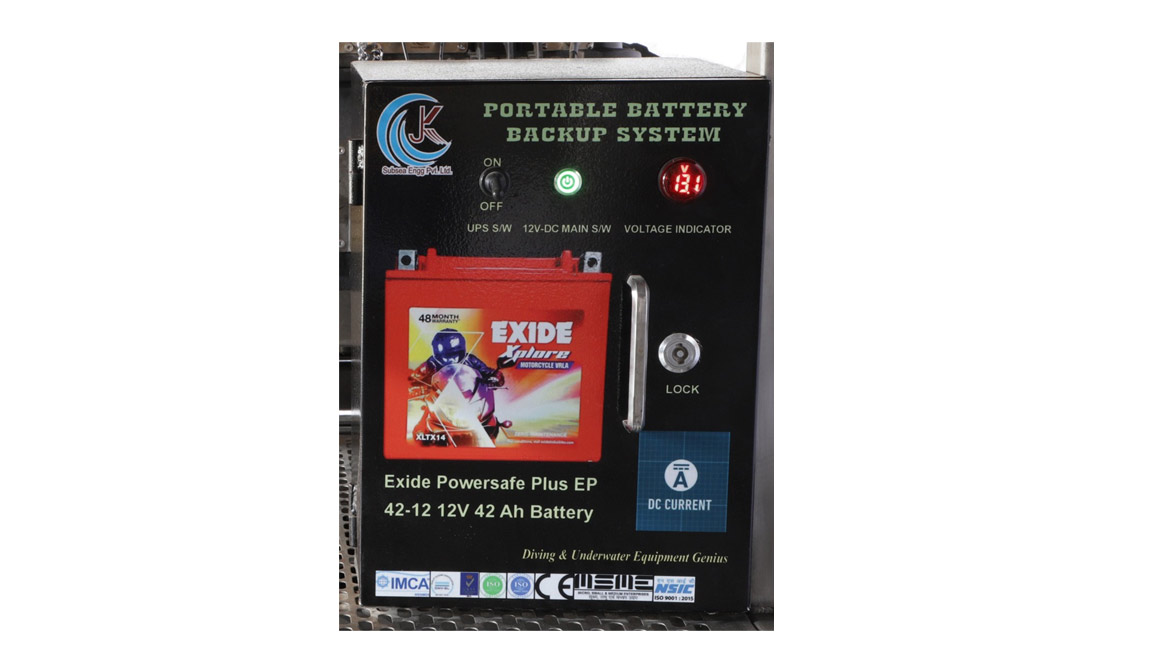

Emergency Backup System
This Backup system help to provide the power supply to
the system, as it is a portable type system.
