Introduction

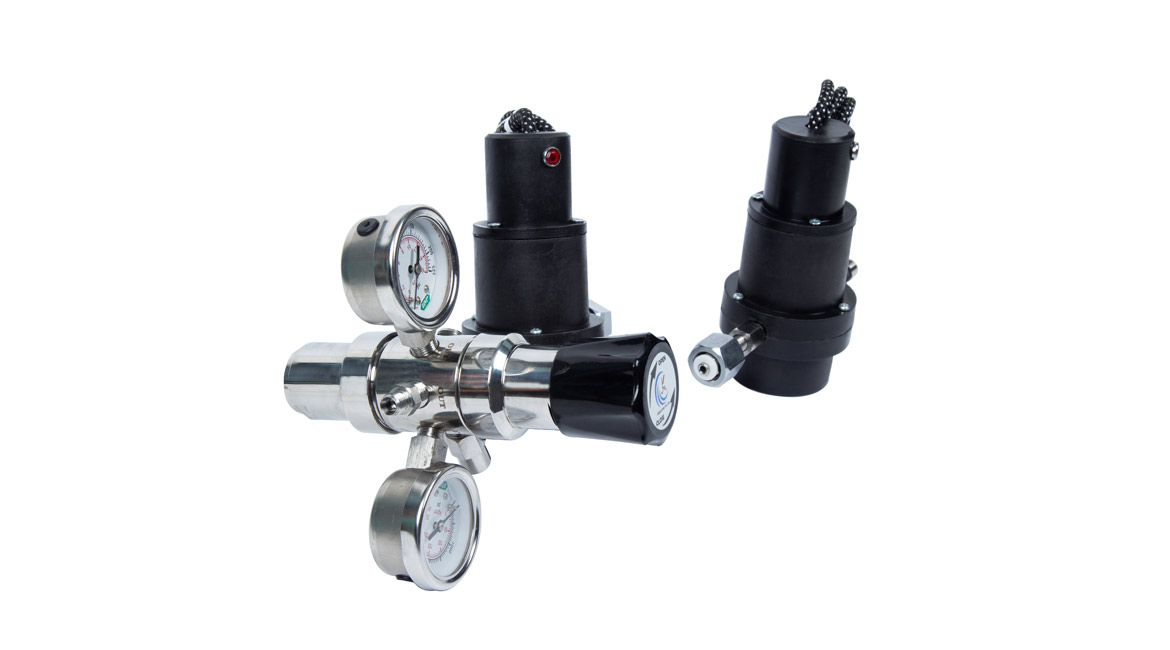

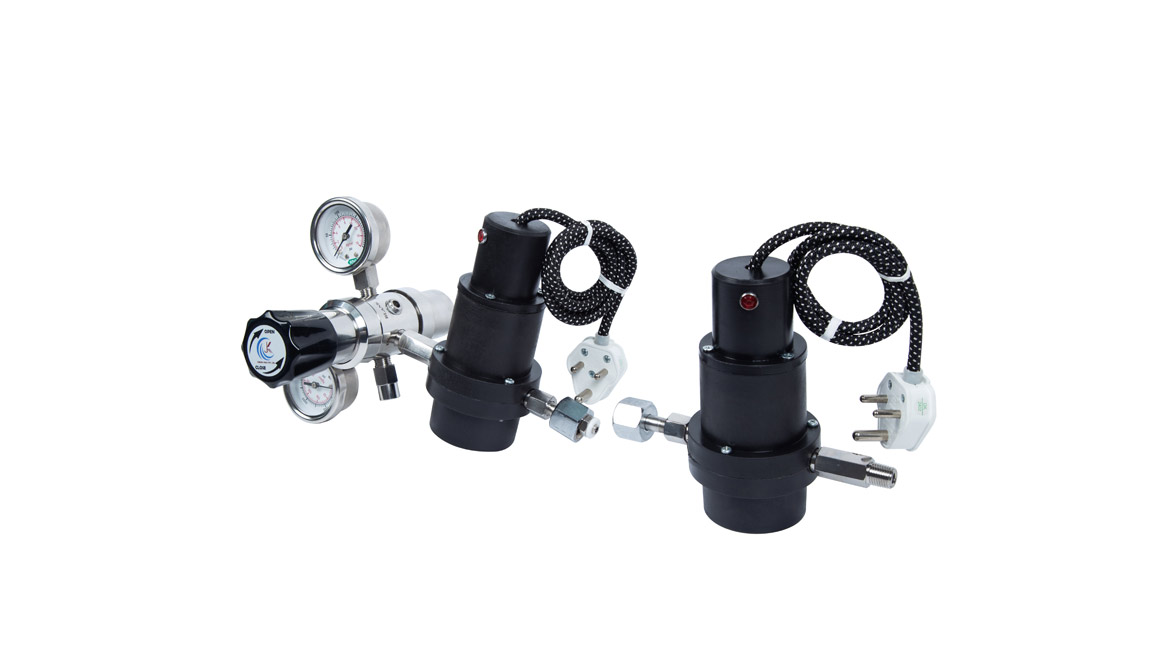

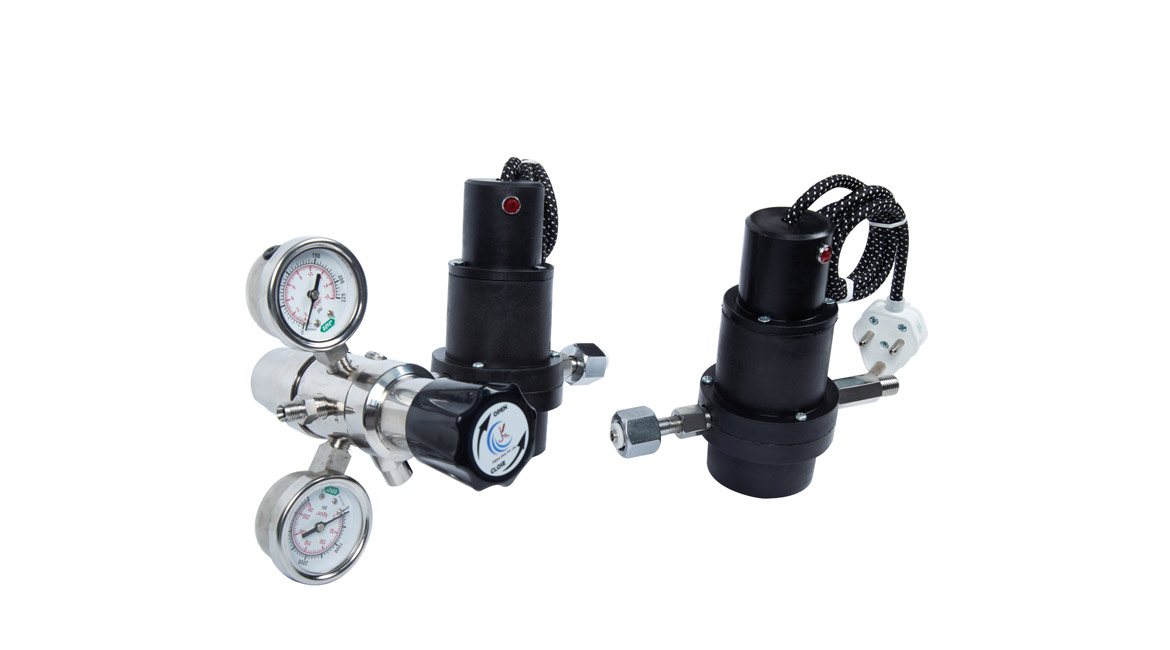

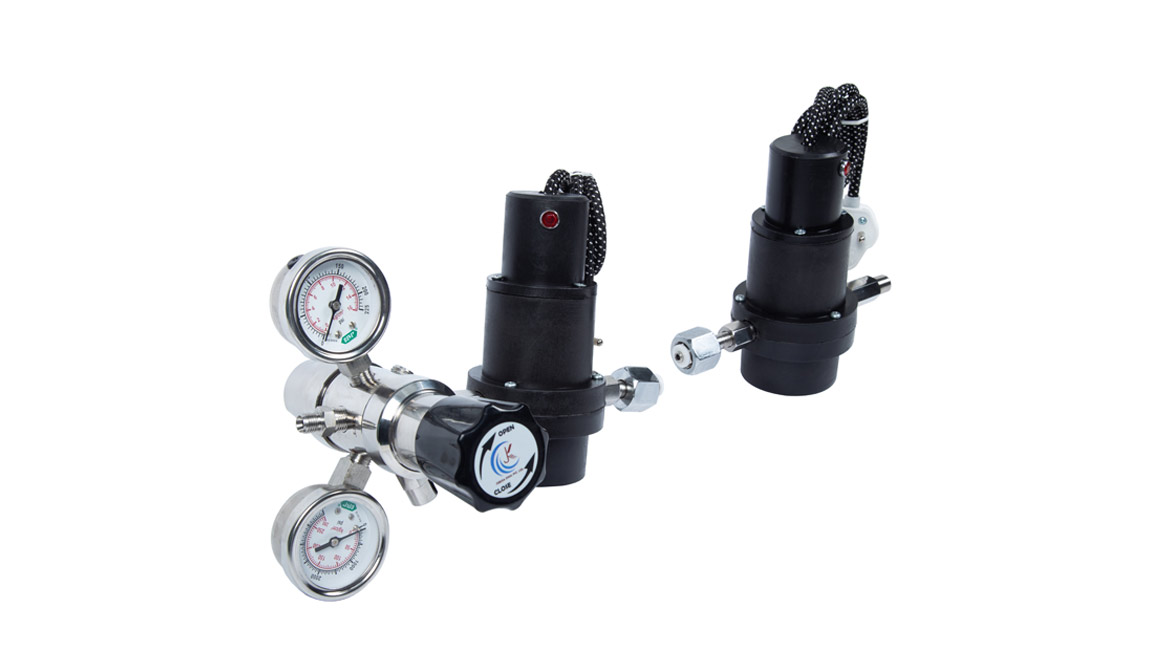

JKSEPL produces various types of Double Stage Pressure Regulators with Heater tailored to customer needs.
Our Regulators were meticulously crafted for precision tasks, utilizing Premium materials such as Stainless Steel & High Grade Brass.
Each regulator featured inlet and outlet pressure gauges compliant with EN837-1 standards (As per client requirements).
Stainless steel diaphragms were predominantly utilized in our regulators.
Technical Specification:
- Product Type: Regulator (Double Stage Regulator)
- Material: Stainless Steel / Brass
- Grade: SS 316 / Grade II
- Maximum Inlet Pressure: 280 Bar / 4061.06 PSI
- Maximum Outlet Pressure: 16 Bar / 232.06 PSI
- Locking Pressure: 16 Bar
- Flow Capacity:Cv: 0.02
- Temperature Range: -30 to 74 °C
- Maximum Operating Torque:30 in-lbs or 3.4 Nm
- Port: 6 Port as per IS Standard
- Diaphragm Type: SS316 Diaphragm
- Valve Seat: PTFE
- Knob Type: Hand Operated, fine control threaded type Bonnet
- Standard: IS 6901:2009
- Electrical: 230 Volts, 50–60 Hz, Single Phase
- Material: Aluminum Case and Solid Brass Expansion Chamber
- Power Consumption: 100 Watts
- Dimensions: 2" Diameter, 6" Over All Length
- Capacity: 190 SCFH
- Laboratory and point of use gas system.
- Sampling system, zero, span and calibration Analyzer gas
- Compact in size
- Designed to minimize contamination and provide accurate regulations of any corrosive, noncorrosive, or Toxic gas.
Heater:
Application
Features & Benefits
Model No.
| Stainless Steel | |
|---|---|
| Nitrox Oxide: | JK-17-A |
| Carbon Dioxide: | JK-17-B |
| Brass | |
| Nitrogen Dioxide | JK-18-A |
| Carbon Dioxide: | JK-18-B |
