Introduction
20 VOLT AC / 60HZ specially designed to meet the different power requirements of various countries.
The electric carbon dioxide heater is intended for use on 230 Volts, 60 hertz, and single-phase alternating Current (AC) ONLY.
It is not insulated for outdoor use and, therefore, must be protected from moisture and weather or climatic conditions which could cause electrical equipment to become a hazard. Use only with a 3-wire, grounded, electrical extension cord and socket.
Withdrawal rates of 20 Scfh. or more can result in the withdrawal of liquid carbon dioxide from a cylinder or the Reliquification of the gas before it enters into a carbon dioxide flow meter/regulator combination unit.

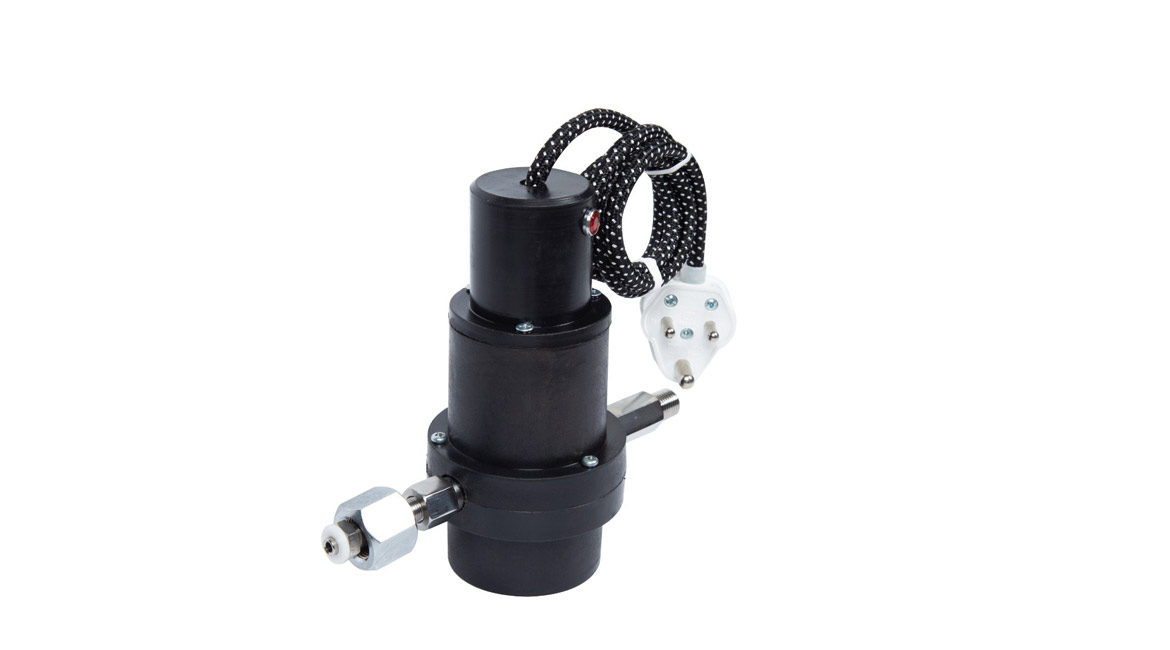

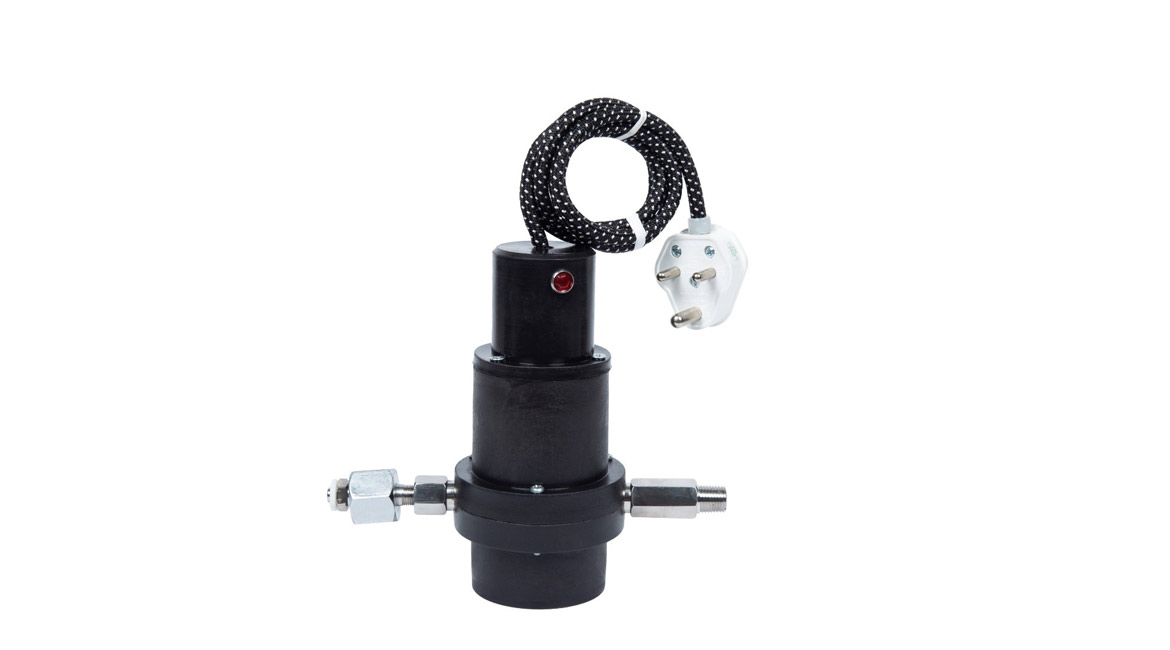

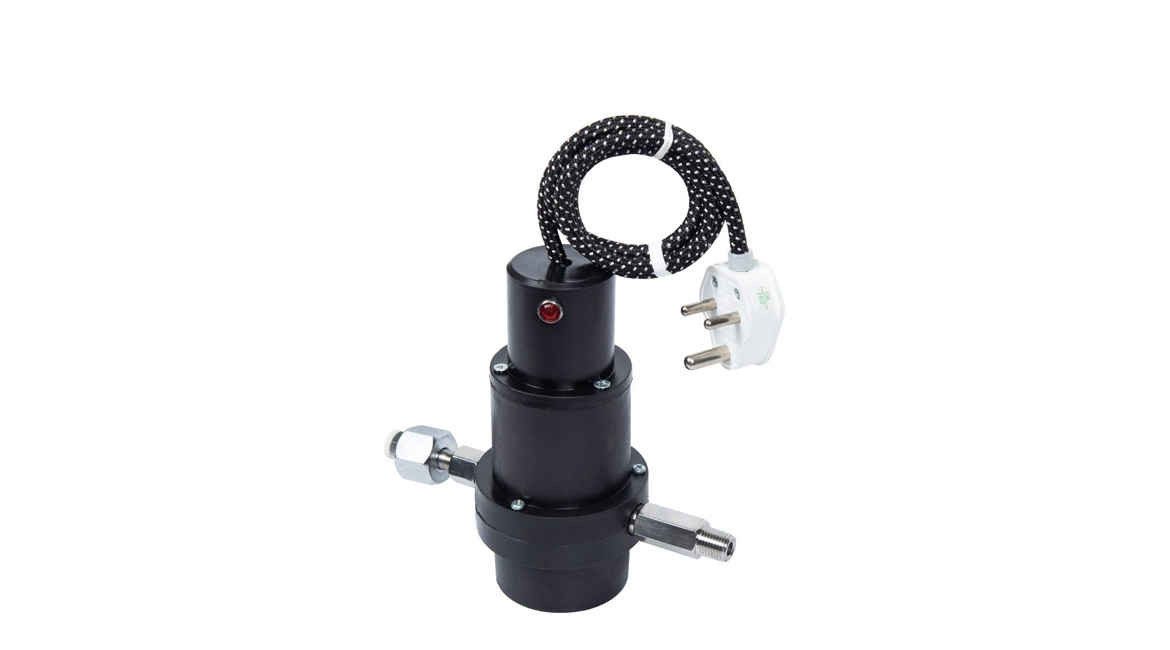

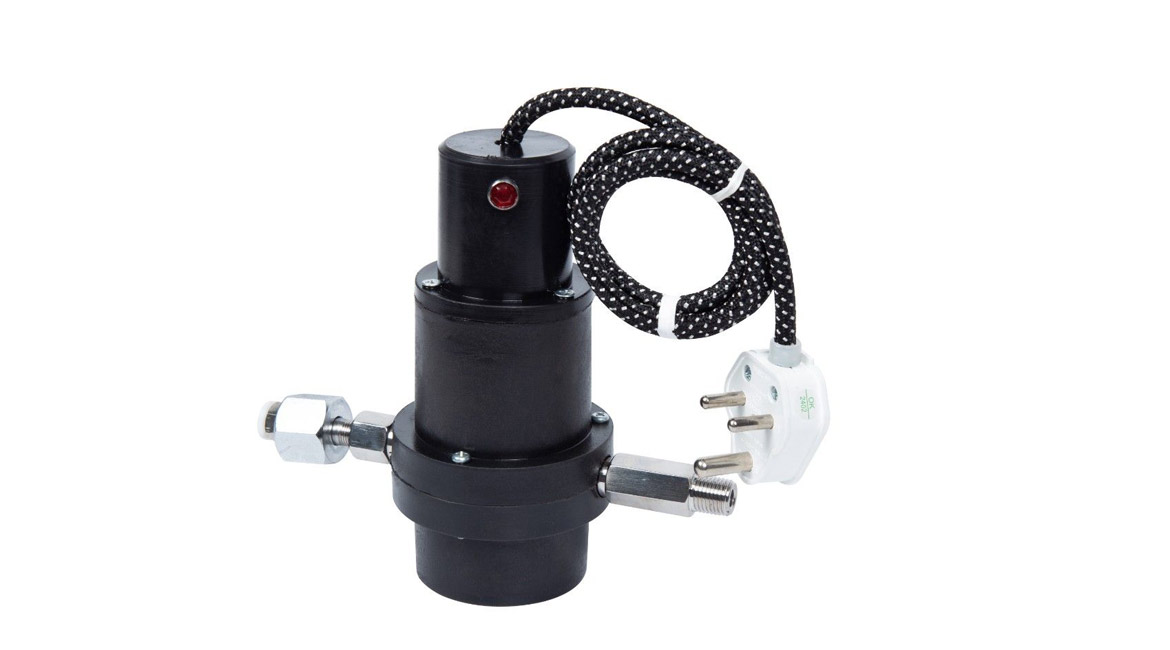

The enclosed heating element and a thermostatic control prevent overheating and possible damage to the regulator. The CO heater between the cylinder valve and the regulator.
Fiber washers must be used on both CGA 320 connections.
Use on carbon dioxide gas withdrawal cylinders only.
DO NOT use liquid carbon dioxide withdrawal cylinders gas
MODEL NO: CO2 JK-21-A, N2O JK-21-B
Technical Specification
Electrical: 230 Volts, 60 Hz, Single Phase
Material: Aluminum Case and solid Brass
Expansion Chamber
Power Consumption: 100 Watts
Dimensions: 2" Diameter, 6" Over All Length
Capacity: 90 SCFH
Fittings: Solid Brass for CO Cylinders, CGA 320 230 Volt AC / 60hz
The most ECONOMICAL Thermostatic controlled CO2 Heater, designed to prevent CO2 regulator Freeze-Up.
Extends life of Regulator / Flow meter and prevents porosity in welds from loss of shield gas in frozen regulator.
Easily installed between CO cylinder valve and Flow meter
