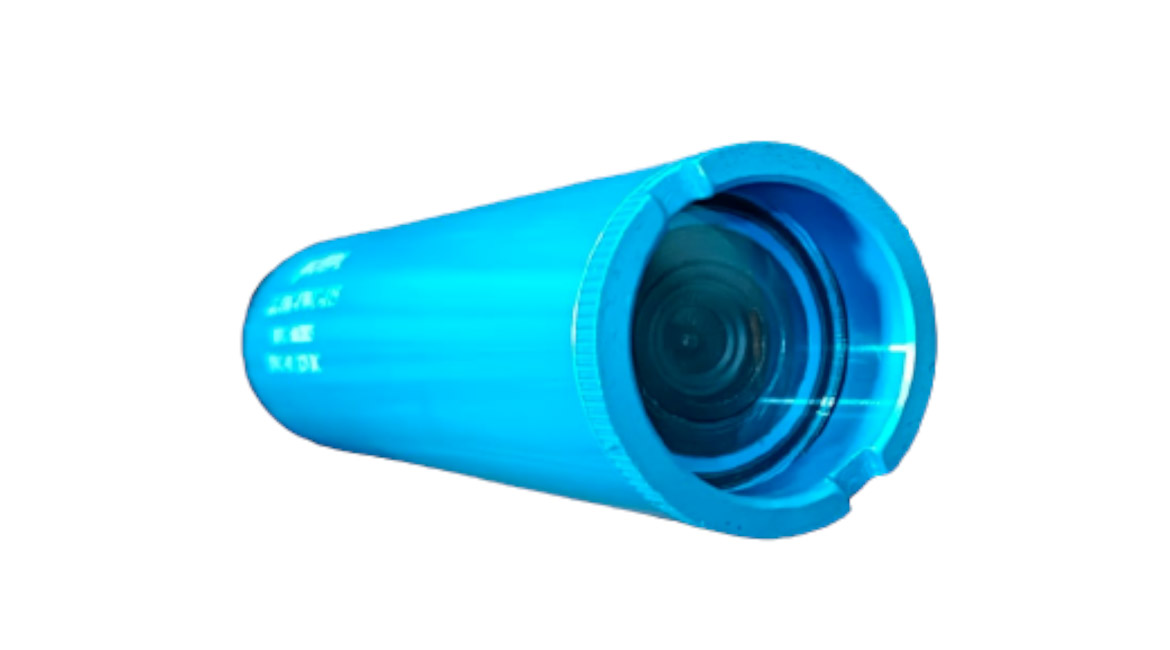

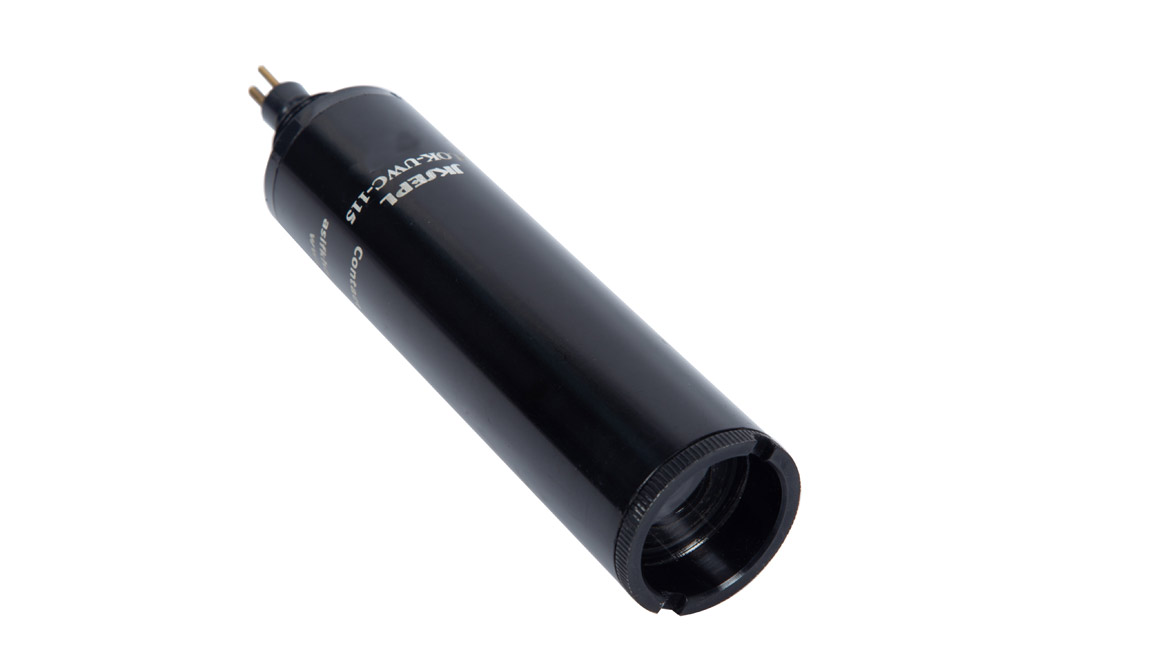

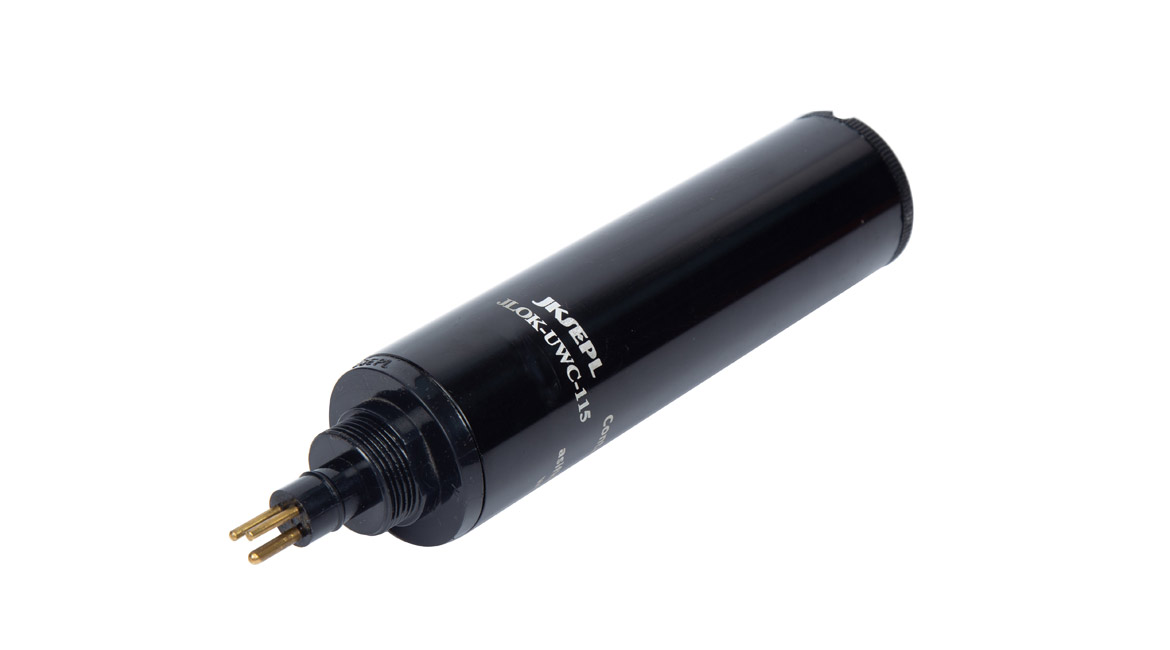

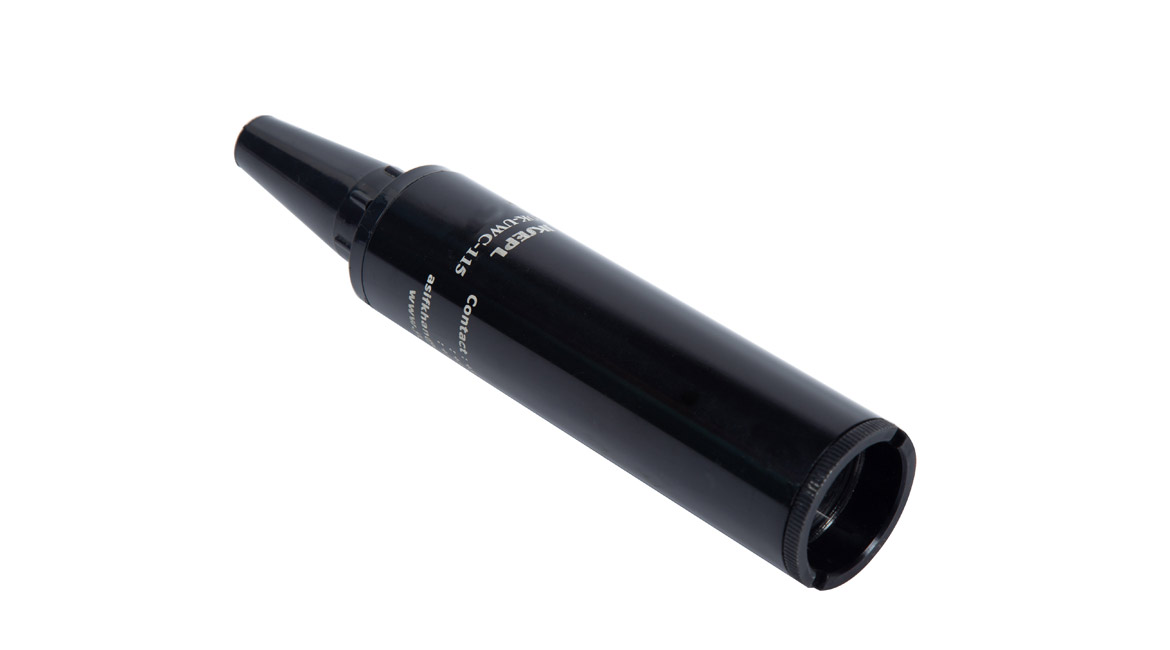

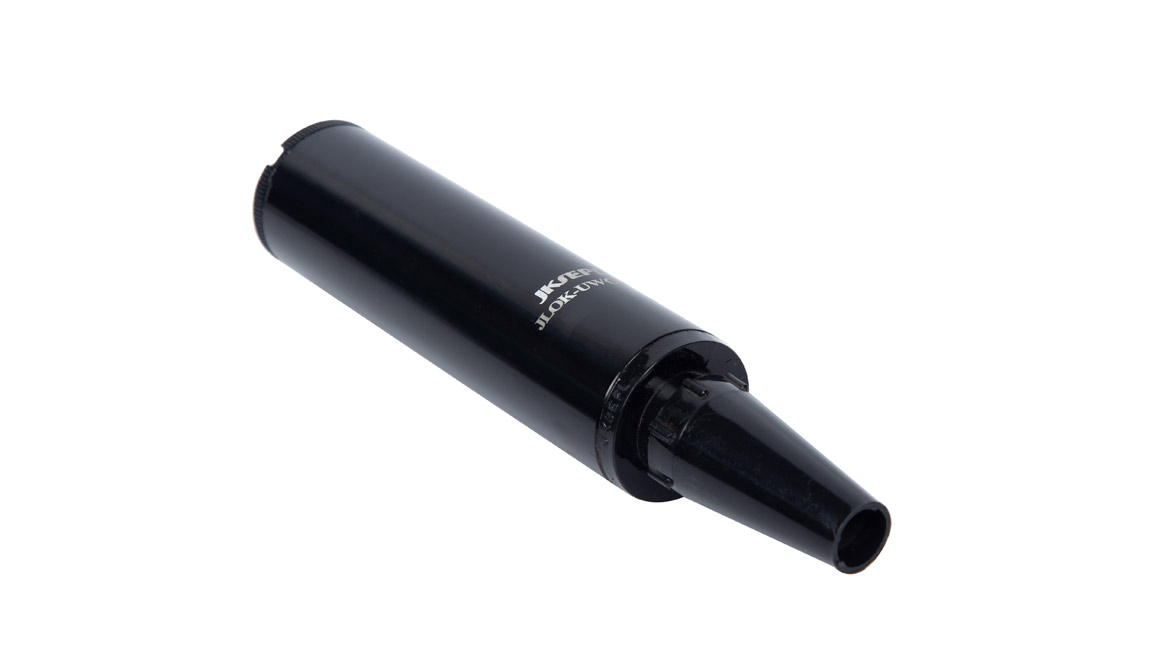

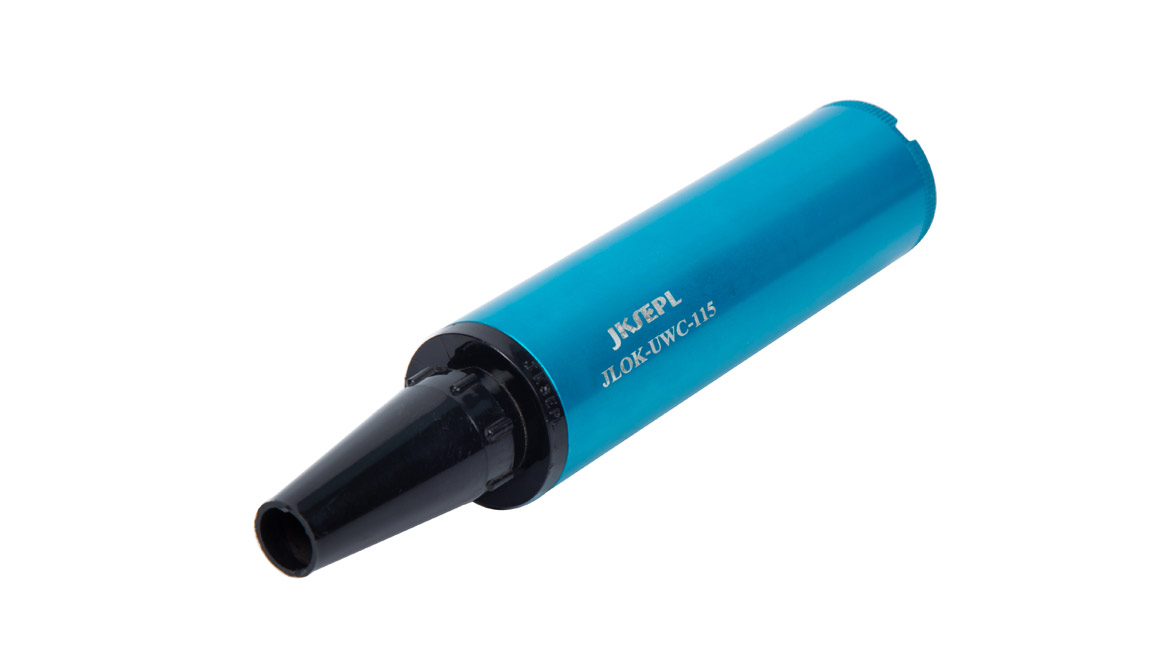

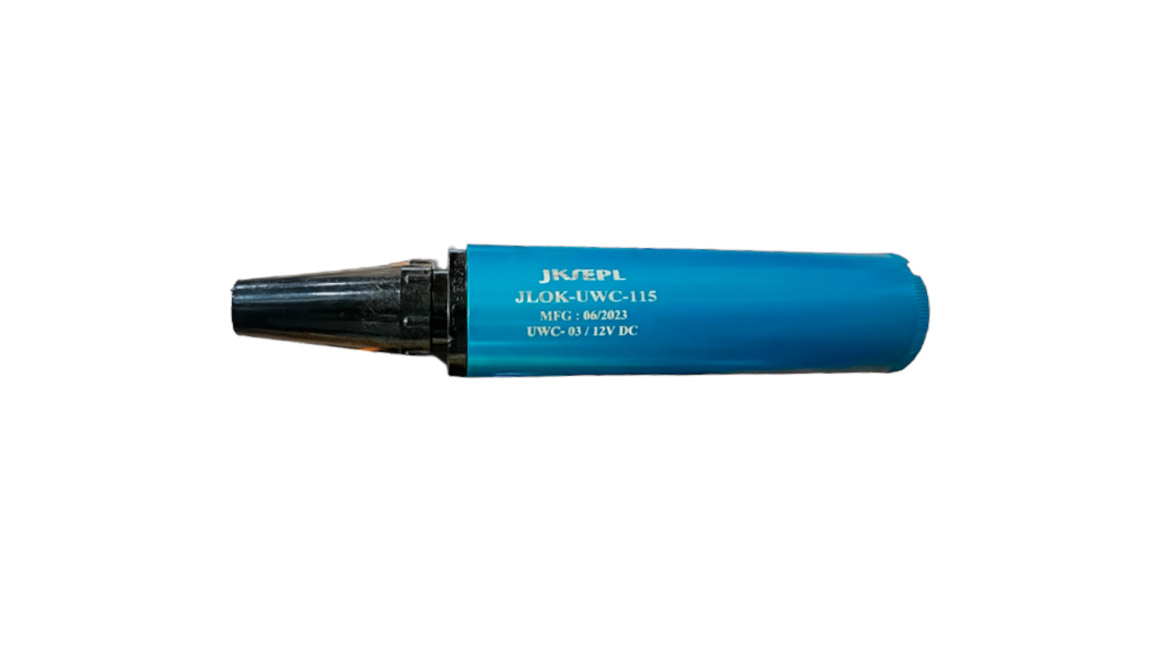

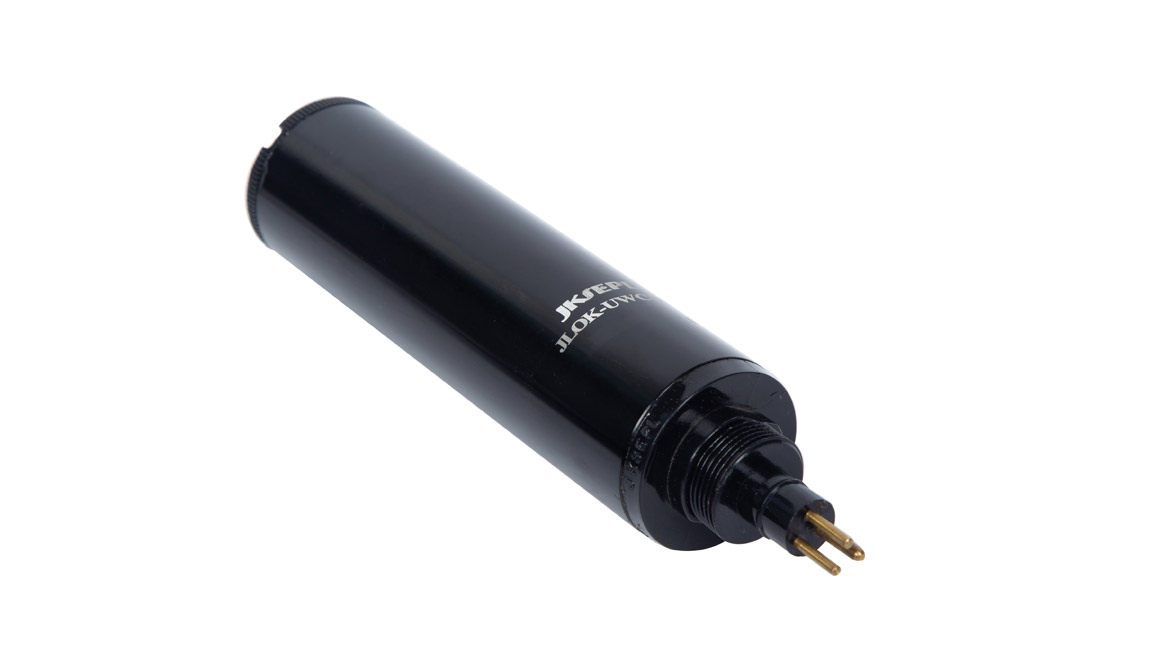

Introduction
- Image Device: 1/4" JK Super CCD
- Product Support: AWB, AGC, and AES
- Picture Elements: NTSC: 510x492, PAL: 500x582
- Resolution: 330 TVL
- Minimum Illumination: 0.05 Lux / F2.0
- S/N Ratio: More than 48 dB
- Gamma: 0.45
- Iris Control: Fixed
- Lens Furnished: Board Lens 3.6mm /F2.0 (optional: f 6.0/12mm)
- Sync. Function: Internal
- Video Output: 1 Vp-p / 75 ohms, BNC Connector
- Power Supply / Signal: A. Video Wire, B. -ve, C. +12 VDC
- Power Consumption: 1.44W / 120 mA
- Operating Temperature: -10 C to 50 C
MODEL NO: JK-136
